Product Details:
|
| Shell Material: | Silicon | Maximum Operating Temperature: | + 85 C |
|---|---|---|---|
| Minimum Operating Temperature: | -25 C | Power Supply Voltage - Max: | 15 V |
| Supply Voltage - Minimum: | 8V | ||
| Highlight: | HVAC Gas Mass Flow Sensor |
||
Product Description:

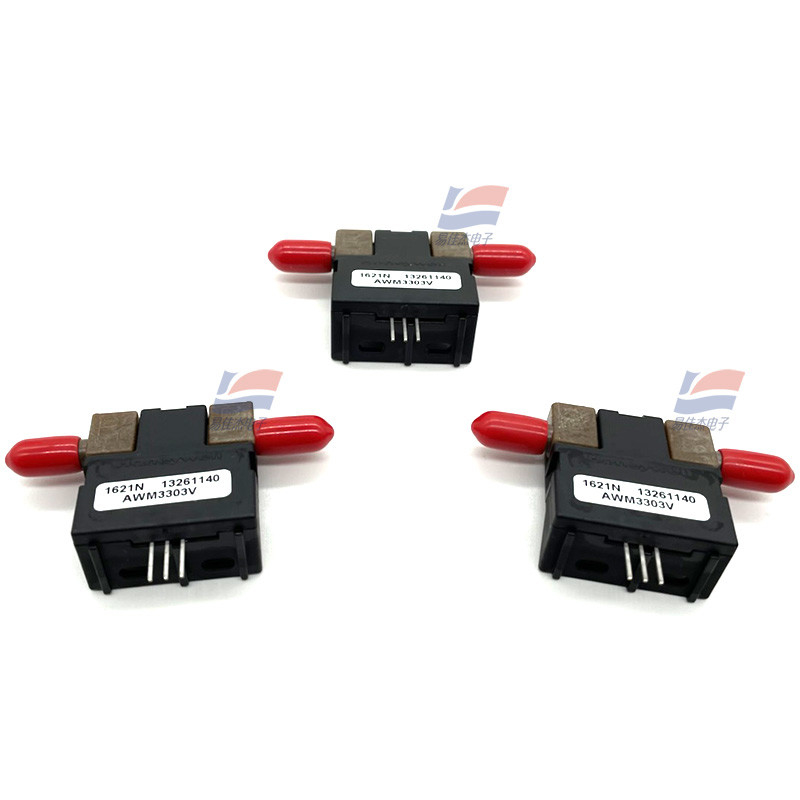

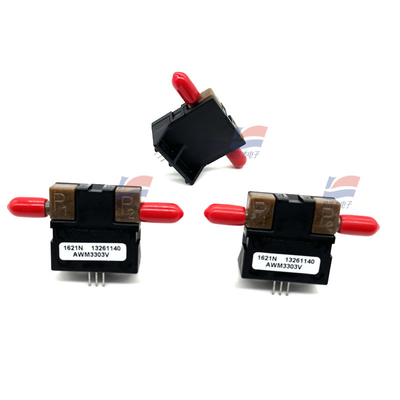

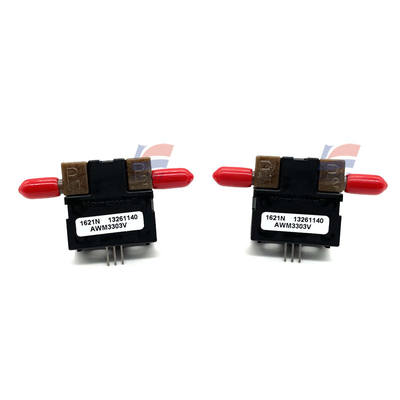

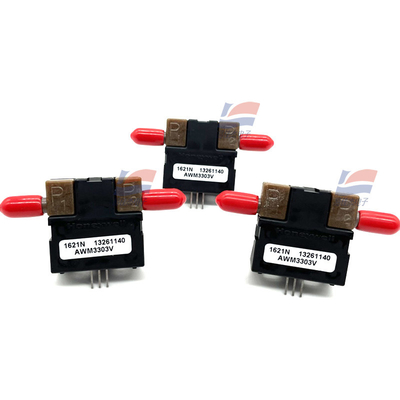

AWM3300V Micro-Bridge Gas Mass Flow Sensor Is Used In HVAC
Features:
AWM3000 series, like the 2000 series, is controlled by a dual Whiston bridge for the measurement of air flow. The AWM3000 series is large, so it can be used to increase the gain of the sensor output and introduce voltage compensation. The heater control circuit and the sensing bridge feed circuit are integrated in the sensor. Signal regulation: Large (output 1 Vdc to 5 Vdc) Pressure pass type: Pass-through flow/pressure range Reference Model +_200 sccm AWM3100V+ _0.0 inch water column (5 mBar) AWM3200V+_0.5 inch water column AWM3201CR+_1000 sccm(1 SLPM) AWM3300V+_1000 sccm(1 SLPM) Two-way AWM3303V
Manufacturer:
Product category: Flow sensor
RoHS:
Type: Mass Air Flow Sensor
Used for: Dry Gas
Range: +/ -1 L/min
Accuracy: 1%
Operating power supply voltage: 8V to 15V
Port size: 5.08 mm
Shell material: Silicon
Brand name:
Maximum operating temperature: + 85 C
Minimum operating temperature: -25 C
Product type: Flow Sensors
Series: AWM3000
5
Subcategory: Sensors
Power supply voltage - Max: 15 V
Supply voltage - Minimum: 8 V
Specifications:
| Type | Mass Air Flow Sensor |
| Used for | Dry Gas |
| Range | +/ -1 L/min |
| Accuracy | 1% |
