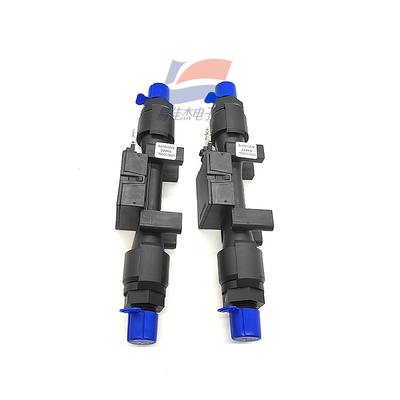

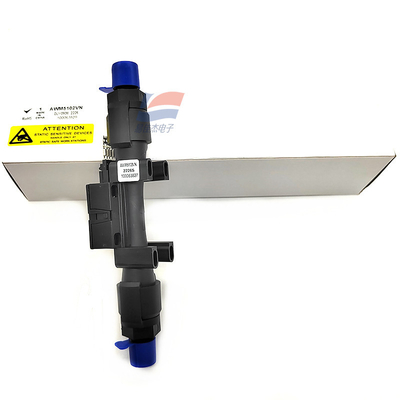

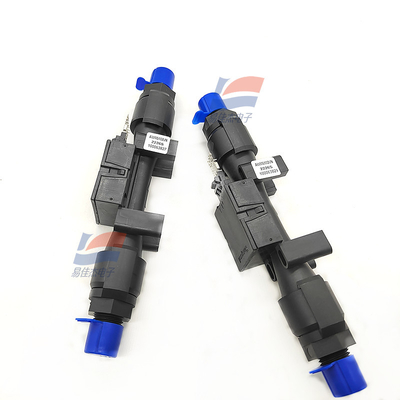

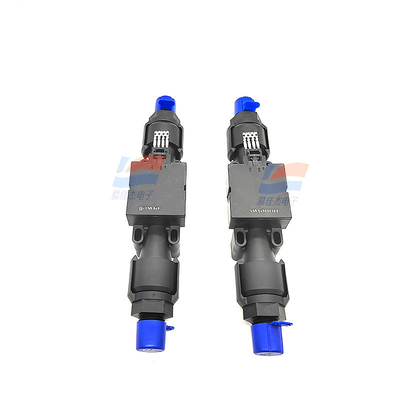

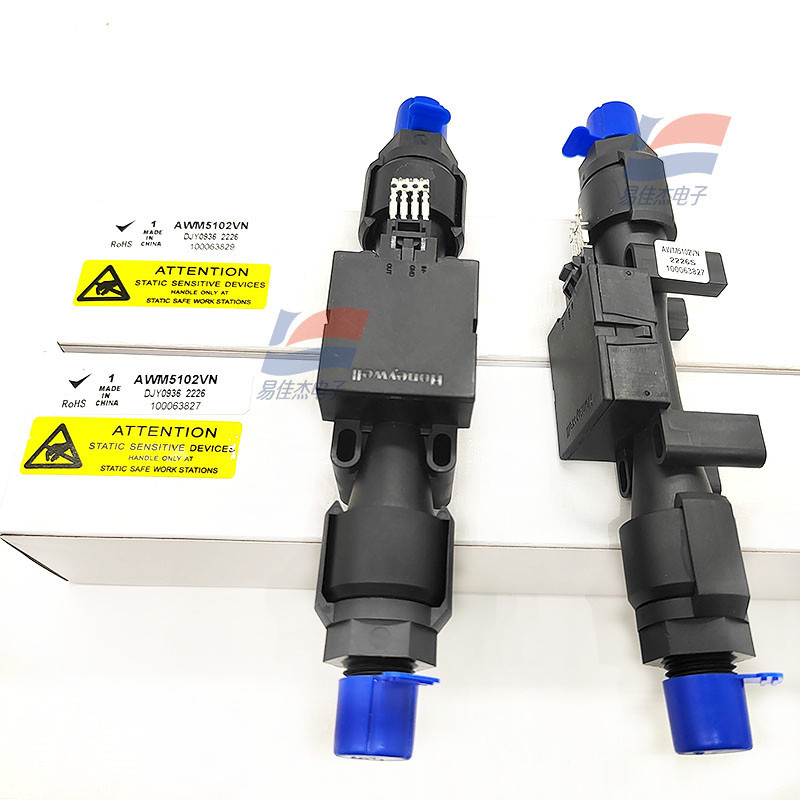

YJJ AWM5102VN Analog Output Nitrogen N2 Calibrates The 10SLPM Gas Flow Sensor

Product Description:

AWM5102VN Analog Output Nitrogen N2 Calibrates The 10SLPM Gas Flow Sensor

Features:

AWM5000 series micro-bridge gas mass flow sensors feature Venturi tube housing and can measure flow rates up to 20SLPM with a pressure drop of no more than 2.25 "water column. The microbridge chip directly contacts the airflow, greatly reducing the possibility of error caused by through hole or bypass blockage. Rugged plastic package designed to withstand common-mode pressures up to 50psi. The internal small sensing element can withstand the impact of 100gs with no impact on performance. Comes with AMP-compatible connectors for reliable connectivity in demanding applications.

Product characteristics

• Linear voltage output

• Venturi tube design

• Remote installation function

• Laser calibration, high interchangeability

• Multiple calibration gas types

Product application

• Medical equipment

• Leak detection equipment

• Mass flow controller

• Environmental climate control devices

• Fuel cell control unit

Manufacturer:

Product category: Flow sensor

RoHS:

Type: Mass Air Flow Sensor

Used for: Dry Gas

Range: 0 SLPM to 10 SLPM

Accuracy: 0.5%

Output voltage: 5 V

Operating power supply voltage: 8V to 15V

Port size: 6.35 mm

Shell material: Silicon

Brand name:

Maximum operating temperature: + 70 C

Minimum operating temperature: -20 C

Product type: Flow Sensors

Series: AWM5000

5

Subcategory: Sensors

Power supply voltage - Max: 15 V

Supply voltage - Minimum: 8 V

Unit weight: 60 g

Specifications:
