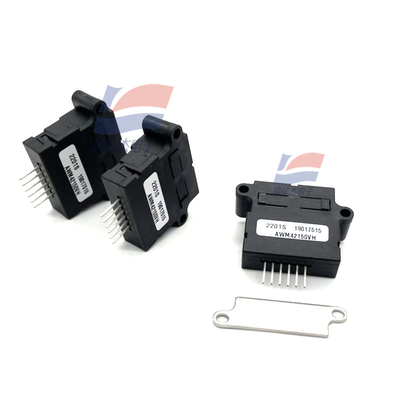

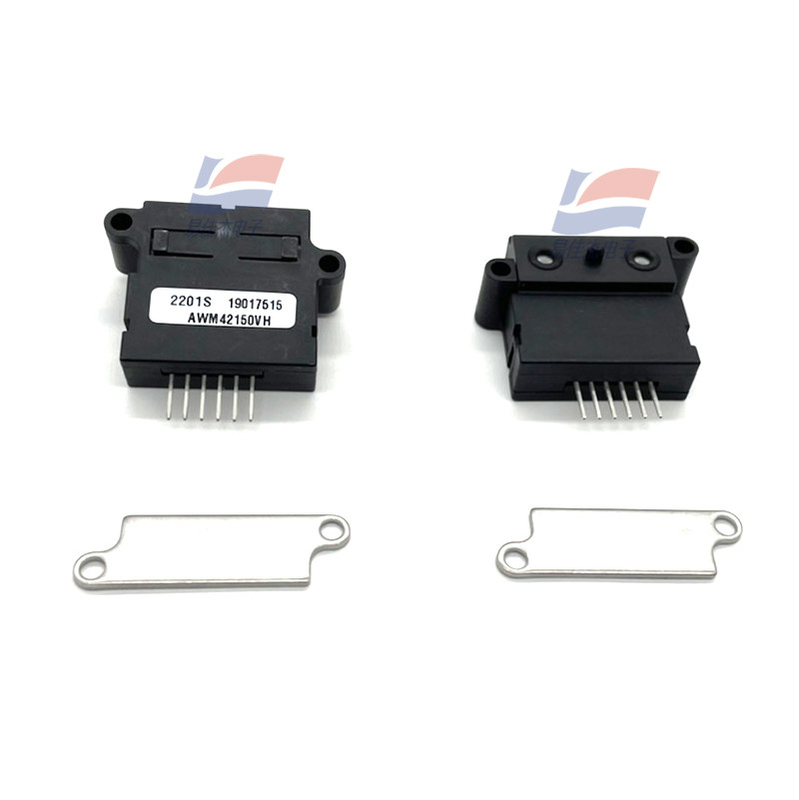

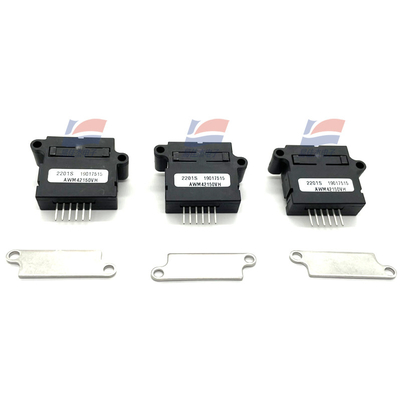

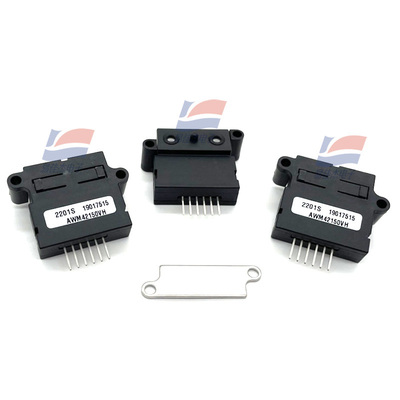

YJJ AWM42150VH Air Flow Sensor 0~30SCCM Non-amplified 6 Pins

Product Description:

AWM42150VH Air Flow Sensor 0~30SCCM Non-amplified 6 Pins

Features:

AWM40000 Series Mass flow sensor series is based on proven microbridge technology and includes both an amplified signal conditioning device and a non-amplified sensor device only.

When using non-amplified devices (AWM42150VH and AWM42300V), a specification heater control circuit and induction bridge power supply circuit are required for operation.

These two circuits are not included on the onboard sensor and therefore must be provided in the application.

Differential amplifier circuits are ideal for providing output gain and/or generating sensor output voltage bias.

Amplification devices (AWM43300V and AWM43600V) can be used to increase output gain and generate voltage bias.

Differential instrument amplifier circuit, heater control circuit and induction bridge power supply circuit are provided in the onboard amplification sensor.

Manufacturer:

Product category: Flow sensor

RoHS:

Type: Air Flow Sensor

Used for: Hydrogen Gas

Range: +/ -25 cm/min

Accuracy: 0.35%

Output voltage: 8.5mV

Operating power supply voltage: 8V to 15V

Port size: 4.826 mm

Shell material: Silicon

Brand name:

Max. operating temperature: + 125 C

Minimum operating temperature: -40 C

Output type: Analog

Product type: Flow Sensors

Series: AWM40000

5

Subcategory: Sensors

Power supply voltage - Max: 15 V

Supply voltage - Minimum: 8 V

Unit weight: 17.500g

Specifications:
