Product Details:
|
| Output Voltage: | 5 V | Operating Power Supply Voltage: | 8V To 15V |
|---|---|---|---|
| Port Size: | 4.826 Mm | Maximum Operating Temperatur: | + 85 C |
| Minimum Operating Temperature: | -25 C | ||
| Highlight: | Micro-Bridge Gas Mass Flow Sensor,AWM43600V Flow Sensor |
||
Product Description:

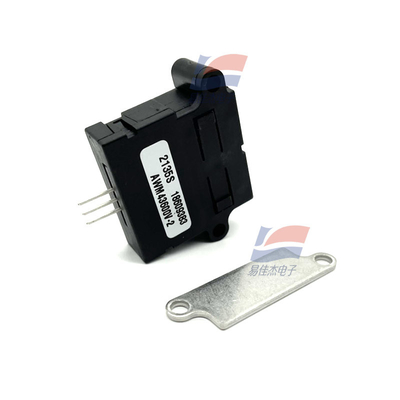

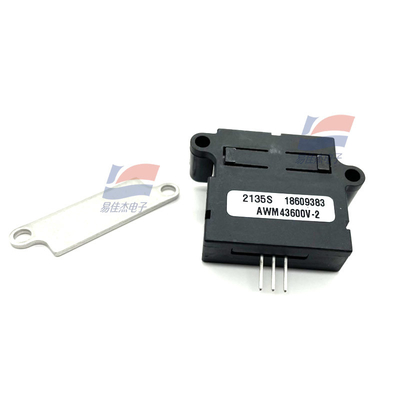

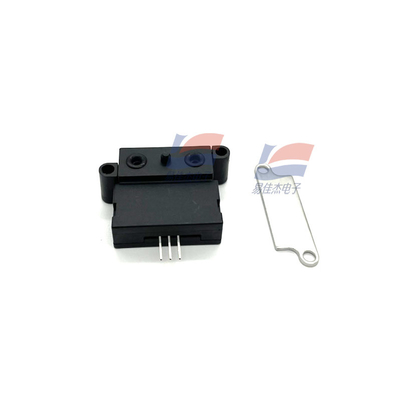

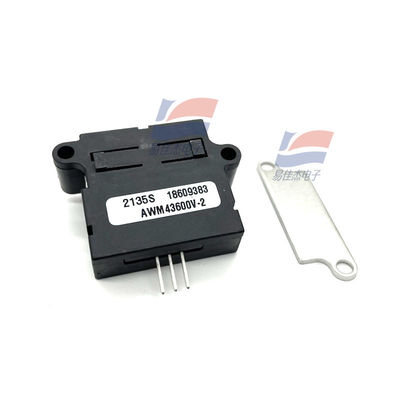

AWM43600V Damper Control 6SLPM Micro-Bridge Gas Mass Flow Sensor
Features:
AWM40000 Series Mass flow sensor series is based on proven microbridge technology and includes both an amplified signal conditioning device and a non-amplified sensor device only.
When using non-amplified devices (AWM42150VH and AWM42300V), a specification heater control circuit and induction bridge power supply circuit are required for operation.
These two circuits are not included on the onboard sensor and therefore must be provided in the application.
Differential amplifier circuits are ideal for providing output gain and/or generating sensor output voltage bias.
Amplification devices (AWM43300V and AWM43600V) can be used to increase output gain and generate voltage bias.
Differential instrument amplifier circuit, heater control circuit and induction bridge power supply circuit are provided in the onboard amplification sensor.
Manufacturer:
Product category: Flow sensor
RoHS:
Type: Mass Air Flow Sensor
Used for: Dry Gas
Range: 6 L/min
Accuracy: 1%
Output voltage: 5 V
Operating power supply voltage: 8V to 15V
Port size: 4.826 mm
Shell material: Silicon
Brand name:
Maximum operating temperature: + 85 C
Minimum operating temperature: -25 C
Product type: Flow Sensors
Series: AWM40000
20
Subcategory: Sensors
Power supply voltage - Max: 15 V
Supply voltage - Minimum: 8 V
Unit weight: 11 g
Specifications:
| Type | Mass Air Flow Sensor |
| Used for | Dry Gas |
| Range | 6 L/min |
| Accuracy | 1% |
