Product Details:
|
| Operating Power Supply Voltage: | 8V To 15V | Port Size: | 4.8 Mm |
|---|---|---|---|
| Maximum Operating Temperature: | + 85 C | Minimum Operating Temperature: | -25 C |
| Power Supply Voltage - Max: | 15V | Supply Voltage - Minimum: | 8V |
| Highlight: | Precision Air Quality Flow Sensor,YJJ Air Quality Flow Sensor |
||
Product Description:

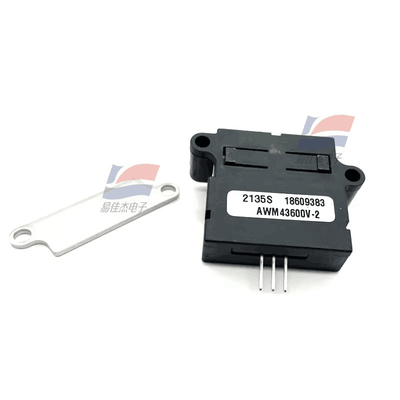

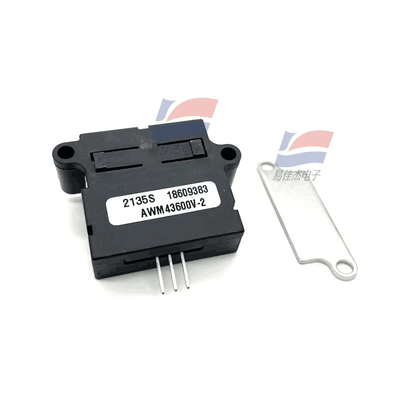

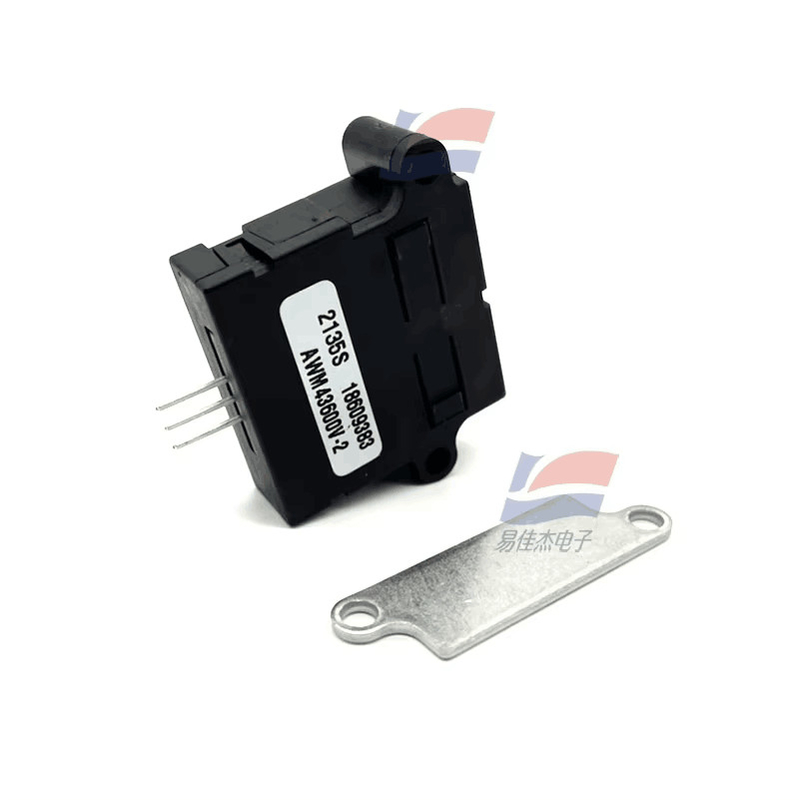

AWM43600V-2 Air Quality Flow Sensor Automated Control Precision
Features:
AWM40000 Series Mass flow sensor series is based on proven microbridge technology and includes both an amplified signal conditioning device and a non-amplified sensor device only.
When using non-amplified devices (AWM42150VH and AWM42300V), a specification heater control circuit and induction bridge power supply circuit are required for operation.
These two circuits are not included on the onboard sensor and therefore must be provided in the application.
Differential amplifier circuits are ideal for providing output gain and/or generating sensor output voltage bias.
Amplification devices (AWM43300V and AWM43600V) can be used to increase output gain and generate voltage bias.
Differential instrument amplifier circuit, heater control circuit and induction bridge power supply circuit are provided in the onboard amplification sensor.
Manufacturer:
Product category: Flow sensor
RoHS:
Used for: Dry Gas
Range: 6 L/min
Accuracy: 1%
Output voltage: 5 V
Operating power supply voltage: 8V to 15V
Port size: 4.8 mm
Brand name:
Maximum operating temperature: + 85 C
Minimum operating temperature: -25 C
Pressure Port: Port
Product type: Flow Sensors
Series: AWM40000
5
Subcategory: Sensors
Power supply voltage - Max: 15 V
Supply voltage - Minimum: 8 V
Specifications:
| Type | Mass Air Flow Sensor |
| Used for | Dry Gas |
| Range | 6 L/min |
| Accuracy | 1% |
