YJJ MF4003-5-O6-BV-A Gas Mass Flow Sensor Mass Flow Meter Accurate and Precise Measurement for Industrial Applications

Certification
China ShenzhenYijiajie Electronic Co., Ltd. certification
China ShenzhenYijiajie Electronic Co., Ltd. certification
I'm Online Chat Now

YJJ MF4003-5-O6-BV-A Gas Mass Flow Sensor Mass Flow Meter Accurate and Precise Measurement for Industrial Applications

YJJ MF4003-5-O6-BV-A Gas Mass Flow Sensor Mass Flow Meter Accurate and Precise Measurement for Industrial Applications
YJJ MF4003-5-O6-BV-A Gas Mass Flow Sensor Mass Flow Meter Accurate and Precise Measurement for Industrial Applications YJJ MF4003-5-O6-BV-A Gas Mass Flow Sensor Mass Flow Meter Accurate and Precise Measurement for Industrial Applications YJJ MF4003-5-O6-BV-A Gas Mass Flow Sensor Mass Flow Meter Accurate and Precise Measurement for Industrial Applications YJJ MF4003-5-O6-BV-A Gas Mass Flow Sensor Mass Flow Meter Accurate and Precise Measurement for Industrial Applications YJJ MF4003-5-O6-BV-A Gas Mass Flow Sensor Mass Flow Meter Accurate and Precise Measurement for Industrial Applications YJJ MF4003-5-O6-BV-A Gas Mass Flow Sensor Mass Flow Meter Accurate and Precise Measurement for Industrial Applications

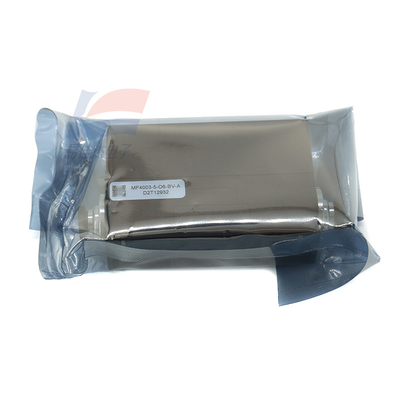

Large Image :  YJJ MF4003-5-O6-BV-A Gas Mass Flow Sensor Mass Flow Meter Accurate and Precise Measurement for Industrial Applications

Product Details:
Place of Origin: USA
Brand Name: SIARGO
Model Number: MF4003-5-O6-BV-A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: boxed
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2200

YJJ MF4003-5-O6-BV-A Gas Mass Flow Sensor Mass Flow Meter Accurate and Precise Measurement for Industrial Applications

Description
Diameter: 3 8 Mm Range Ratio: ≥100:1
Precision: ±(1.5+0.2FS)% Repeatability: 0.25%
Highlight:

Precise Measurement Gas Mass Flow Sensor

,

Industrial Applications Gas Mass Flow Sensor

,

Accurate Gas Mass Flow Sensor

Product Description:

MF4003-5-O6-BV-A Gas Mass Flow Sensor Mass Flow Meter



Features:

FS4000 is a microelectromechanical system (MEMS) flow sensor technology and intelligent electronic control technology, specially developed for ordinary gas flow monitoring products. The sensor can directly measure gas mass flow and low pressure loss. Suitable for purifying air or nitrogen flow monitoring, and can also be used in environmental samplers (e.g. chromatographic analysis instruments)



FS4003 flow sensor, pipe inner diameter of 3mm, low cost measurement range to 5SLPM; Suitable for particle counters and various analytical instruments.



FS4008 flow sensor, pipe diameter is 8mm, measuring range up to 50SLPM; Can be used for anesthesia equipment, clean gas detection, such as: air sampler, gas analyzer, etc



Product features:



- Designed for low pressure gas flow measurement in pipes with diameter of 3mm and 8mm



design



- Support a variety of connection methods, easy to install and use



- The sensor chip adopts thermal mass flow measurement, without temperature and pressure compensation, and the sensor has high precision measurement



- Multi-sensor integration on a single chip, enabling a range ratio of 100:1 or higher



- The output mode is flexible, it can upload data actively through the communication interface or query the output data by the host computer, and it can output linear analog voltage through the analog interface



- Zero stability is high



- Full range high stability, high precision and excellent repeatability



- Low power consumption, low pressure loss



- Fast response



Specifications:

Type Mass Air Flow Sensor
Used for Dry Gas
Range 2 3 4 5 SLPM
Accuracy 0.25%
