Product Details:
|
| Diameter: | 19 Mm | Range Ratio: | ≥100:1 |
|---|---|---|---|
| Precision: | ±(1.5+0.2FS)% | Repeatability: | 0.75% |
| Highlight: | Hospital Oxygen Supply Gas Mass Flowmeter,Precision Gas Mass Flowmeter,MF5619-N-800-B-D-A Gas Mass Flowmeter |
||
Product Description:

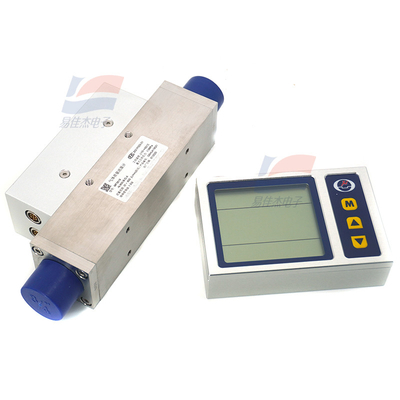

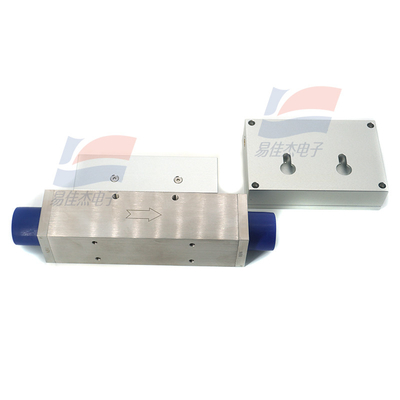

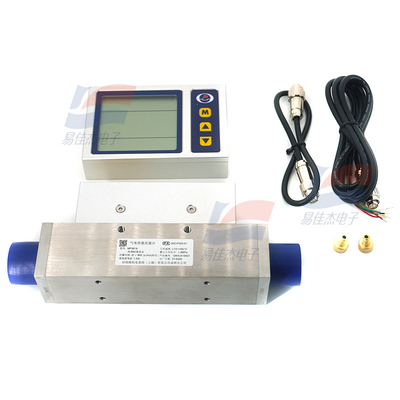

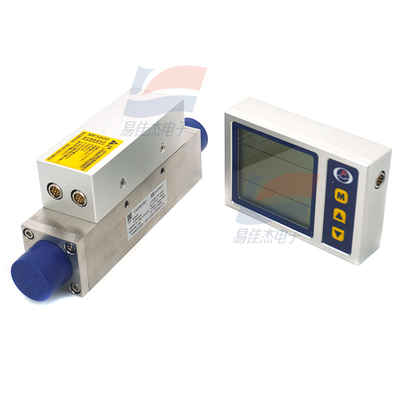

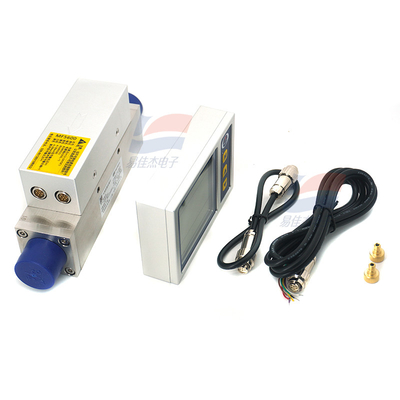

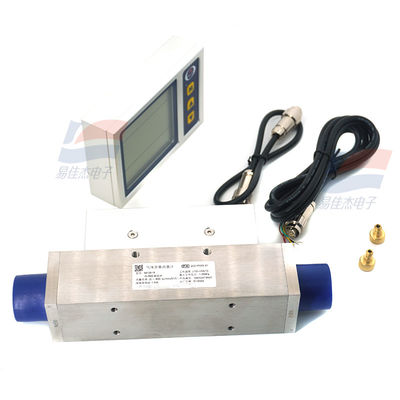

MF5619-N-800-B-D-A Gas Mass Flowmeter Small Air Separation System For Hospital Oxygen Supply System
Features:
MF5600 series split display gas mass flowmeters are specifically designed for applications that require separation of display and body. Such as hospital oxygen supply system, small air separation system. The flowmeter's standard industrial user interface (RS485/4~20mA) and user-defined alarm function can better realize remote or network monitoring. The existing products MF5612 and MF5619 measure 0-300 SLPM and 0-800 SLPM gas flows, respectively.
Application environment
Gas mass flow meter is a new type of instrument used to measure and control gas mass flow. It can be used to monitor air, hydrocarbon gas, combustible gas and flue gas in petroleum, chemical industry, steel, metallurgy, electric power, light industry, medicine, environmental protection and other industrial sectors.
Characteristic point
High reliability, good repeatability, high measurement accuracy, low pressure loss
No moving parts range faster than wide response speed without temperature and pressure compensation
Specifications:
| Type | Mass Air Flow Sensor |
| Used for | Dry Gas |
| Range | 600 800 SLPM |
| Accuracy | 0.75% |
