Product Details:
|
| Operating Temperature: | - 10 - + 55 ℃ | Working Pressure: | 1.0 MPa |
|---|---|---|---|
| Accuracy Level: | ±(2.0+ 0.5FS)% | Caliber: | 12/19 |
| Highlight: | YJJ Micro Gas Mass Flowmeter |
||
Product Description:

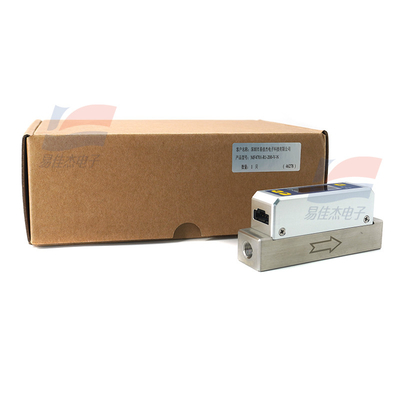

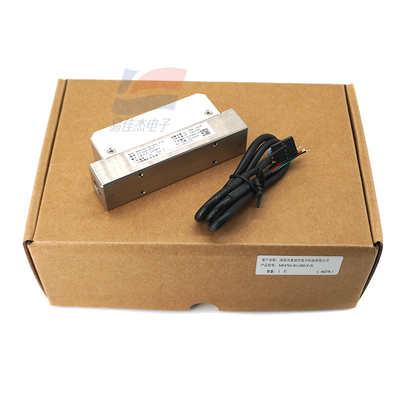

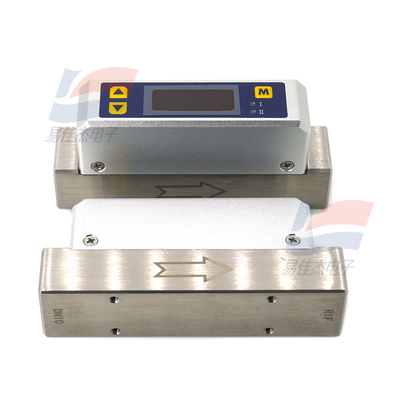

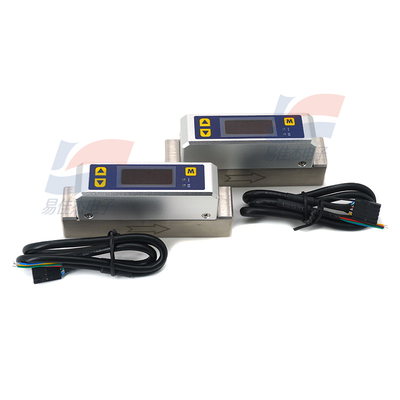

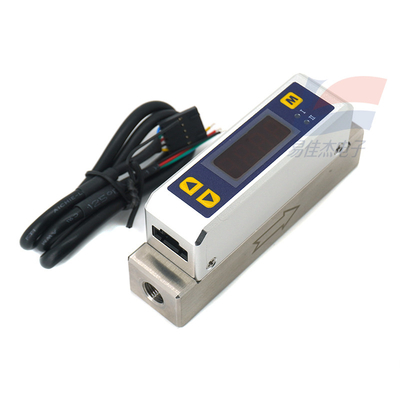

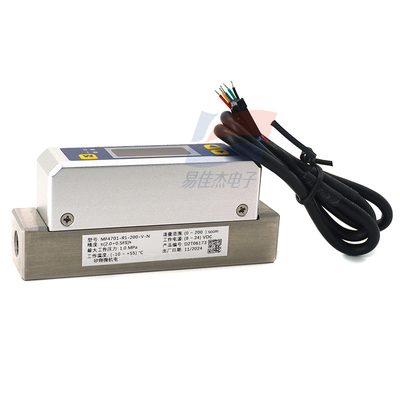

MF4701-R1-200-V-N Digital Display High Precision Micro Gas Mass Flowmeter
Features:
MF4700 series gas mass flowmeters are manufactured with self-developed micro-electro-mechanical system (MEMS) flow sensing chips, suitable for all kinds of clean and dry gases. The MF4700 features a clear and intuitive LED display that displays real-time traffic and cumulative totals. The MF4700 directly outputs mass flow without temperature and pressure compensation. The MF4700 has a push-button function that allows users to adjust or query flowmeter parameters in the field, and has an RS485 network communication interface for remote control and system integration. Machine size and flow range can be customized according to customer requirements.
Specifications:
| Type | Mass Air Flow Sensor |
| Used for | Dry Gas |
| Range | 0-500 1000 SLPM |
| Accuracy | 0.8% |
