Product Details:
|
| Supply Voltage: | DC(5.0± 0.1)V | Average Current: | <40mA (@5V Power Supply) |
|---|---|---|---|
| Peak Current: | 125 MA (@5V Power Supply) | Interface Level: | 3.3V(compatible With 5V) |
| Highlight: | Fresh Air Conditioning Carbon Dioxide Sensor,YJJ MH-Z19E Carbon Dioxide Sensor,Air Purification Equipment Carbon Dioxide Sensor |
||
Product Description:

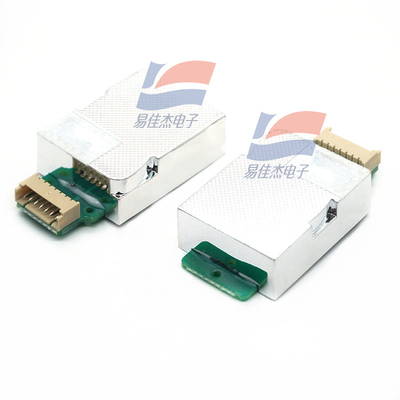

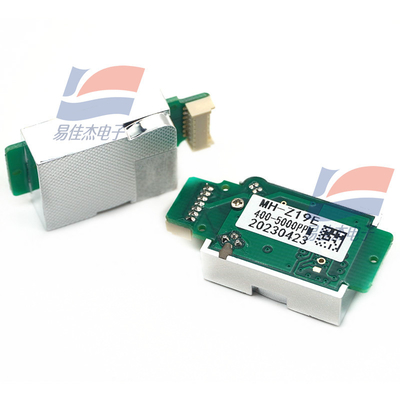

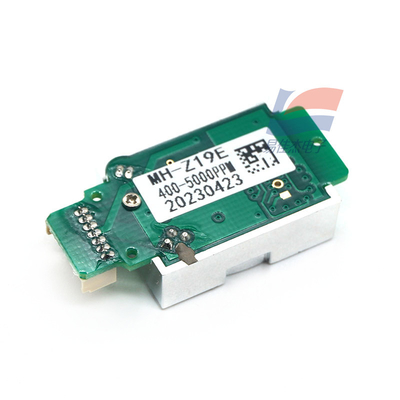

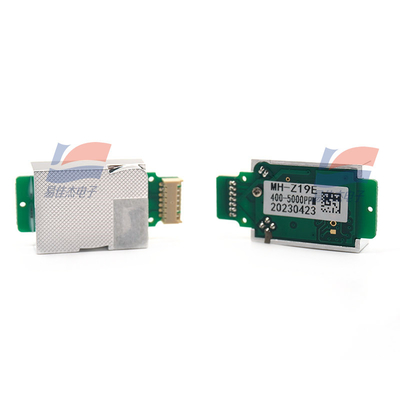

MH-Z19E Carbon Dioxide Gas Sensor For Fresh Air Conditioning Air Purification Equipment
Features:
MH-Z19E carbon dioxide gas sensor (hereinafter referred to as the sensor) is a general intelligent small sensor, there are two kinds of pins and terminals, using non-dispersive infrared (NDIR) principle to detect CO2 in the air, with good selectivity, no oxygen dependence, long life and other characteristics; Built-in temperature compensation; At the same time with serial output, PWM output, easy to use. The sensor is a high performance sensor made by combining the mature infrared absorption gas detection technology with precise optical path design and sophisticated circuit design.
Product model
Specifications:
| Measurement range | 400~10000ppm optional |
| Output Signal serial port | (UART)(TTL level 3.3V) |
| Preheating time | 1min |
| Response time | T90 < 120s |
