Product Details:
|
| Supply Voltage: | DC(5.0±0.1)V | Average Current: | <30mA (@5V Power Supply) |
|---|---|---|---|
| Peak Current: | 125 MA (@5V Supply) | Interface Level: | 3.3V(compatible With 5V) |
| Highlight: | YJJ Carbon Dioxide Gas Sensor |
||
Product Description:

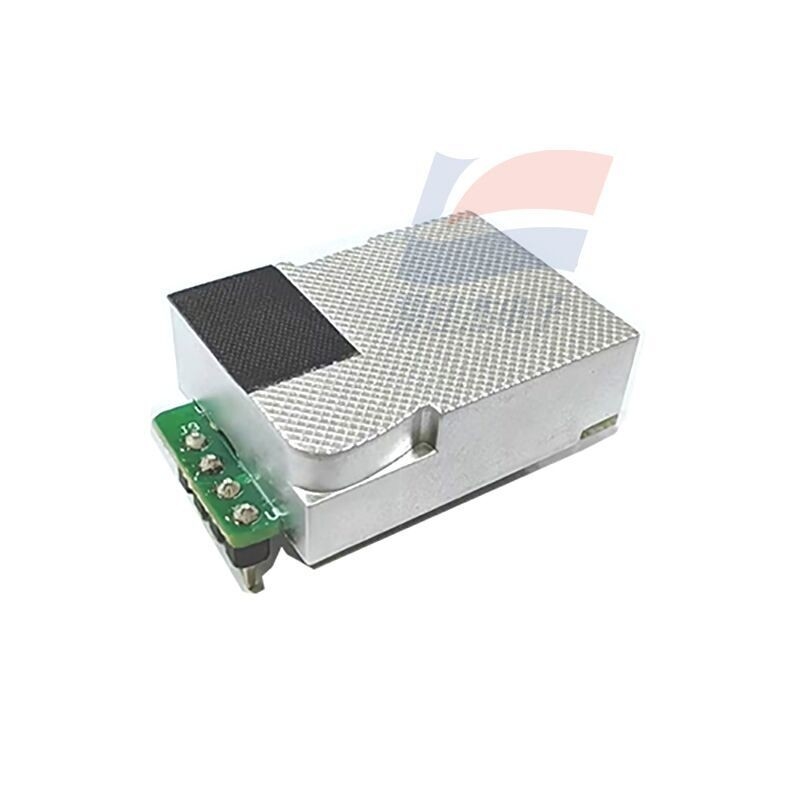

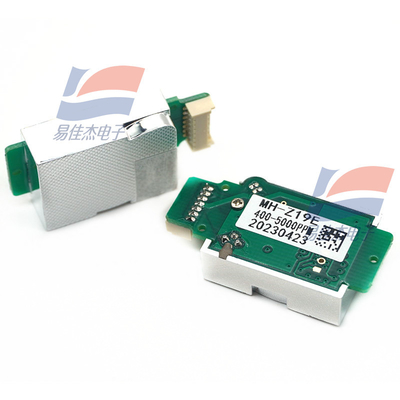

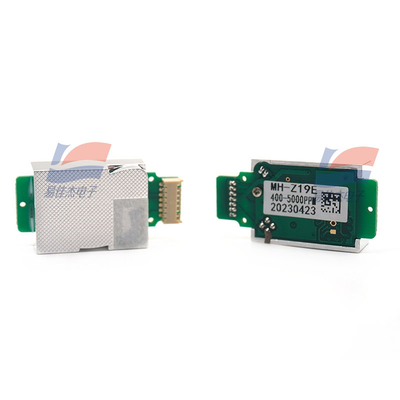

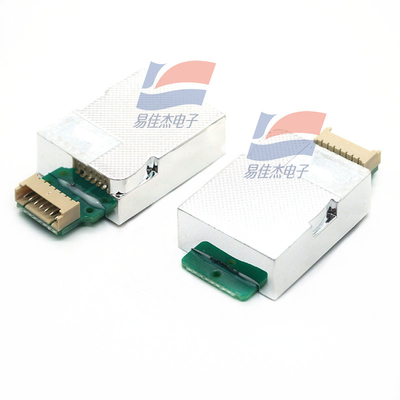

MH-Z1911A Carbon Dioxide Gas Sensor For Fresh Air Systems
Features:
MH-Z1911A carbon dioxide gas sensor (hereinafter referred to as the sensor) is a general intelligent small sensor, using non-dispersive infrared (NDIR) technology to detect carbon dioxide in the air, with good selectivity, no oxygen dependence, long life and other characteristics; Built-in temperature compensation; At the same time with serial output, PWM output, easy to use. The sensor is a high performance sensor made by combining the mature infrared absorption gas detection technology with precise optical path design and sophisticated circuit design.
Product model MH-Z1911A
Detection gas carbon dioxide
Supply voltage DC(5.0±0.1)V
Average current <30mA (@5V power supply)
Peak current 125 mA (@5V supply)
Interface level 3.3V(compatible with 5V)
Measurement range 400~10000ppm optional (see Table 2)
Output signal serial (UART)(TTL level 3.3V) or IIC
PWM
Preheating time 1min
Response time T90 < 120s
Measurement period 5s
Operating temperature -10℃ ~ 50℃
Working humidity 0 ~ 95%RH(non-condensing)
Storage temperature -20℃ ~ 60℃
The weight is 5 grams
Life span >10 years
Specifications:
| Measurement range | 400~10000ppm optional |
| Output Signal serial port | (UART)(TTL level 3.3V) |
| Preheating time | 1min |
| Response time | T90 < 120s |
