Product Details:
|
| Average Current: | <150uA (@5V Power Supply) | Peak Current: | < 90 MA (@5V Power Supply) |
|---|---|---|---|
| Interface Level: | 3.0V(compatible With 5V) | Operating Temperature: | -10℃ ~ 50℃ |
| Highlight: | MH-Z1311A Carbon Dioxide Gas Sensor,carbon dioxide gas detector |
||
Product Description:

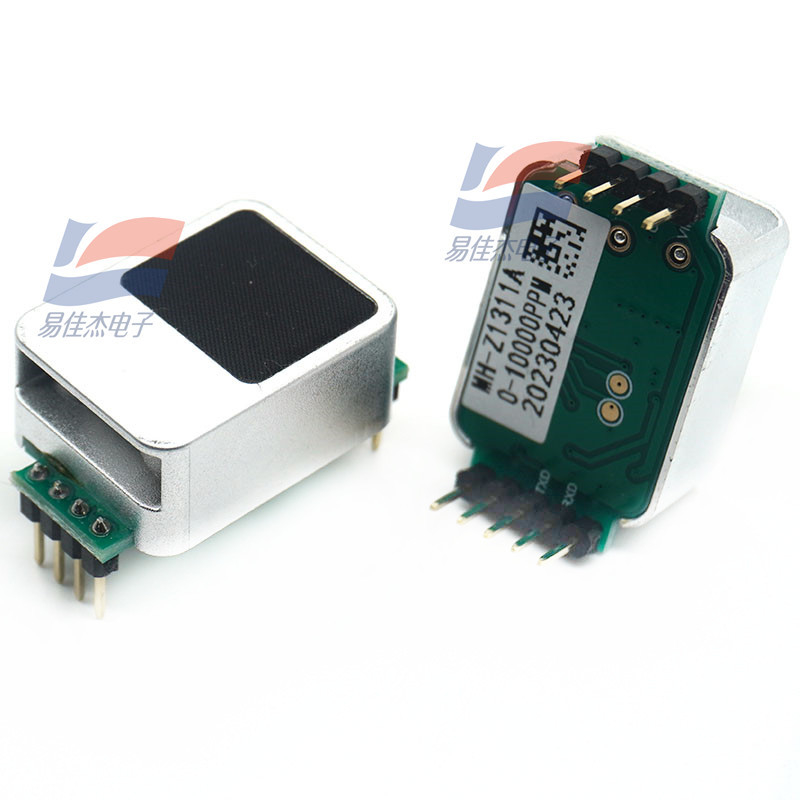

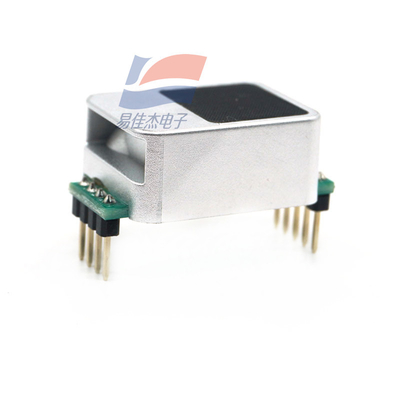

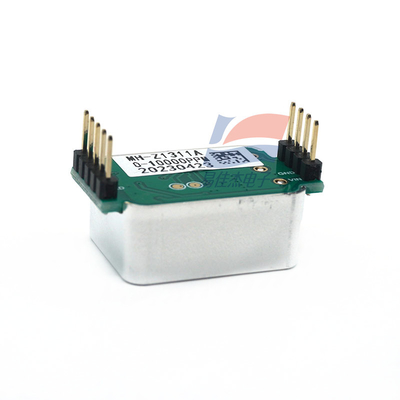

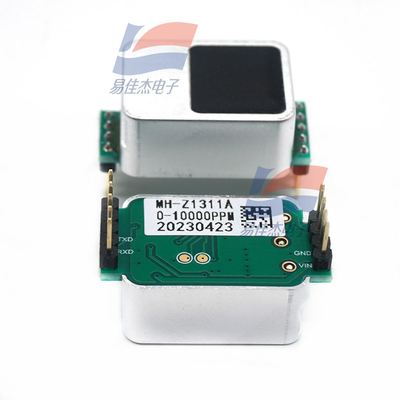

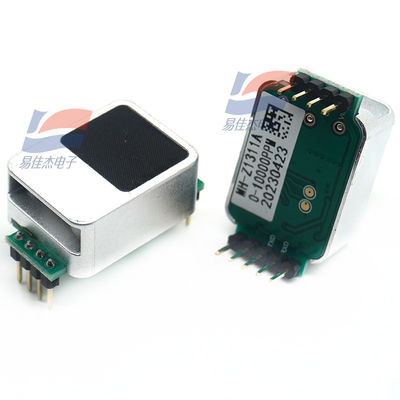

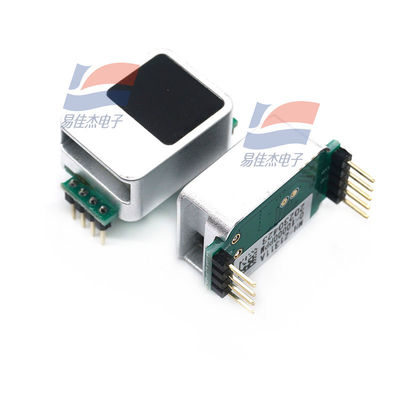

MH-Z1311A Carbon Dioxide Gas Sensor For Air Purification Equipment
Features:
MH-Z1311A carbon dioxide gas sensor (hereinafter referred to as the sensor) is a general purpose, small sensor, using non-dispersive infrared (NDIR) principle to detect CO2 in the air, with good selectivity, no oxygen dependence, long life, built-in temperature compensation, digital output, easy to use. The sensor is a high performance sensor made by combining the mature infrared absorption gas detection technology with precise optical path design and sophisticated circuit design.
Product model MH-Z1311A
Detection gas carbon dioxide
Supply voltage DC(5.0±0.1)V
Average current <150uA (@5V power supply)
Peak current < 90 mA (@5V power supply)
Interface level 3.0V(compatible with 5V)
Measurement range 0~10000ppm optional (see Table 2)
Output Signal serial port (UART)(TTL level 3.3V)
Preheating time 10s
Response time T90 < 60s
Operating temperature -10℃ ~ 50℃
Working humidity 0 ~ 95%RH(non-condensing)
Storage temperature -20℃ ~ 60℃
The weight is 5 grams
Life span >10 years
Specifications:
| Measurement range | 0~10000ppm optional (see Table 2) |
| Output Signal serial port | (UART)(TTL level 3.3V) |
| Preheating time | 10s |
| Response time | T90 < 60s |
