Silicon Pin Photodiodes S1226-8BK S1226-8BQ High Reliability For Analytical Instruments Optical Measurement Equipment

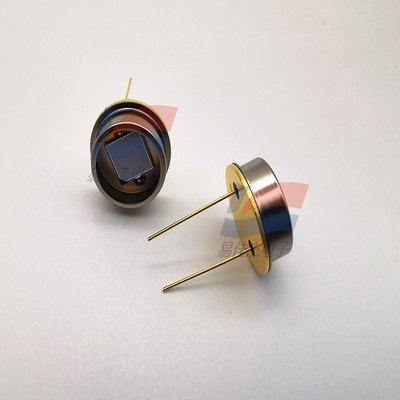

Large Image : Silicon Pin Photodiodes S1226-8BK S1226-8BQ High Reliability For Analytical Instruments Optical Measurement Equipment

Product Details:

Place of Origin:	Japan
Model Number:	S1226-8BK S1226-8BQ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

Silicon Pin Photodiodes S1226-8BK S1226-8BQ High Reliability For Analytical Instruments Optical Measurement Equipment

Description

Light-receiving Side:	5.8 × 5.8 Mm	Encapsulation:	Metal
Package Category:	TO-8	Refrigeration:	Non-cooled
Reverse Voltage (max):	5 V	Spectral Response Range:	320 To 1000 Nm
Highlight:	S1226-8BQ Silicon Pin photodiodes , S1226-8BK Silicon Pin photodiodes , High reliability Silicon Pin photodiodes

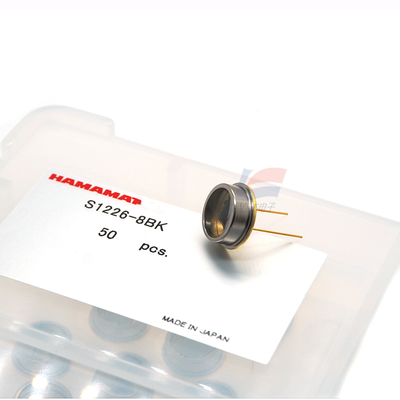

Silicon photodiodes S1226-8BK

It is suitable for precise photometry in the ultraviolet to visible wavelength band; Suppresses near-infrared sensitivity

Features
- High UV sensitivity: QE = 75 % (λ = 200 nm)
- Suppression of NIR sensitivity
- Low dark current
- High reliability

Maximum Sensitivity Wavelength (Typical)	720 nm
Light sensitivity (typical)	0.36 A/W
Dark current (max)	20 pA
Rise Time (Typical)	2 μs
Junction Capacitance (typical)	1200 pF
Noise equivalent power (typical)	5.0×10-15 W/Hz1/2

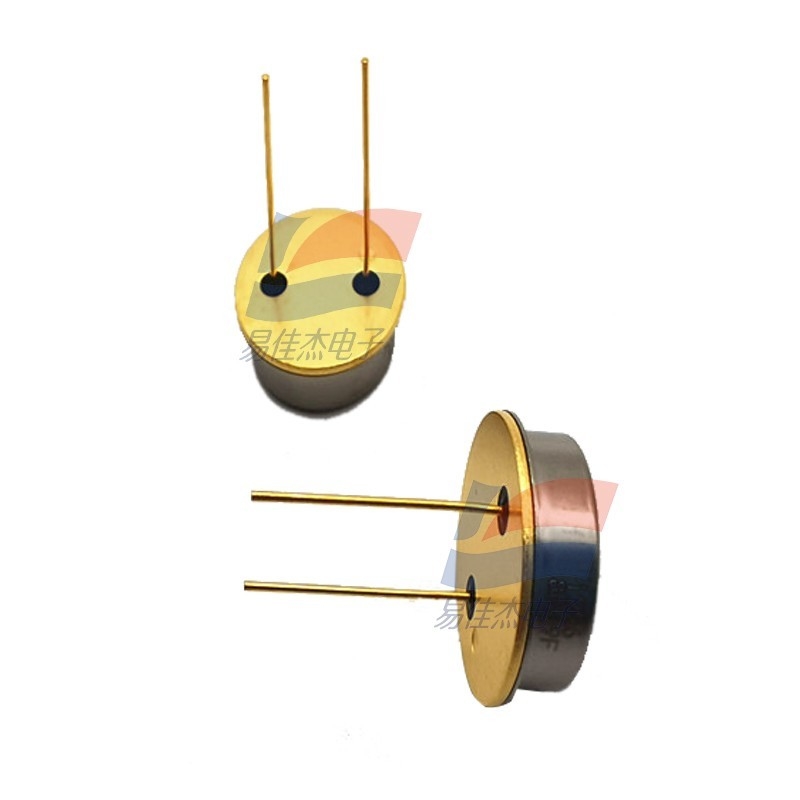

Silicon Pin Photodiodes S1226-8BK S1226-8BQ High Reliability For Analytical Instruments Optical Measurement Equipment 0

Silicon photodiodes S1226-8BQ

It is suitable for precise photometry in the ultraviolet to visible wavelength band; Suppresses near-infrared sensitivity

Features
- High UV sensitivity: QE = 75 % (λ = 200 nm)
- Suppression of NIR sensitivity
- Low dark current
- High reliability

Light-receiving side	5.8 × 5.8 mm
encapsulation	metal
Package Category	TO-8
refrigeration	Non-cooled
Reverse voltage (max)	5 V
Spectral response range	190 to 1000 nm

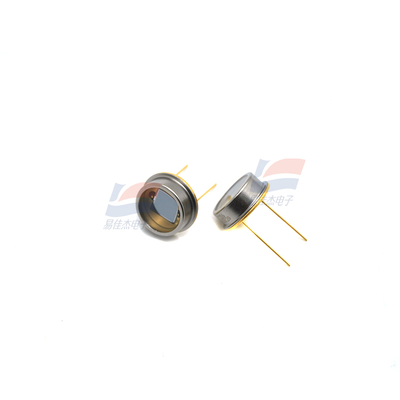

Silicon Pin Photodiodes S1226-8BK S1226-8BQ High Reliability For Analytical Instruments Optical Measurement Equipment 1
