S6775 S6775-01 Silicon PIN Photodiode High-speed Response For Optical Switching Systems

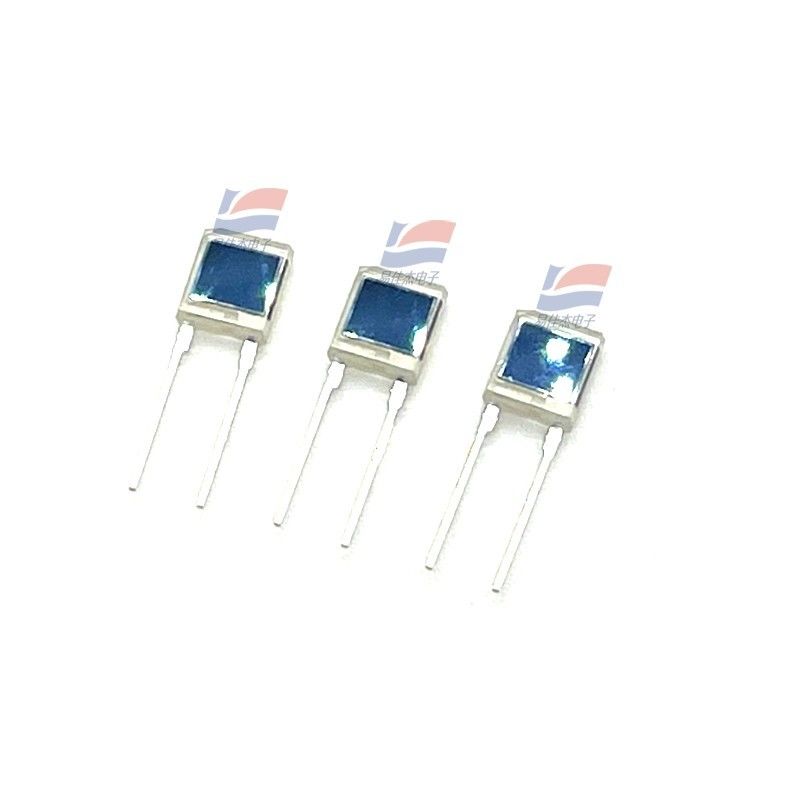

Large Image : S6775 S6775-01 Silicon PIN Photodiode High-speed Response For Optical Switching Systems

Product Details:

Place of Origin:	Japan
Model Number:	S6775 S6775-01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

S6775 S6775-01 Silicon PIN Photodiode High-speed Response For Optical Switching Systems

Description

Light-receiving Side:	5.5 × 4.8 Mm	Encapsulation:	Plastics
Refrigeration:	Non-cooled	Reverse Voltage (max):	20 V
Spectral Response Range:	320 To 1100 Nm	Dark Current (max):	10000 PA
Highlight:	S6775-01 Silicon PIN Photodiode , S6775 Silicon PIN Photodiode , High-speed Response Silicon PIN Photodiode

S6775 S6775-01 Silicon PIN Photodiode High-speed Response For Optical Switching Systems

Plastic SIP (Single In-Line Package)

The S6775 is a silicon PIN photodiode with a large photosensitive surface molded into a clear plastic SIP for detection in the near-infrared range. This silicon PIN photodiode features high sensitivity, high-speed response, and a large photoreceptor area.

Features:
- Visible to Near-Infrared Wavelength
Range - High Sensitivity
- High Speed Response
- Large Photosensitive Surface
- Plastic Package: 7 × 7.8 mm
- Photosensitive Surface Size: 5.5 × 4.8 mm

Light sensitivity (typical)	0.55 A/W
Dark current (max)	10000 pA
Cut-off Frequency (typical)	15 MHz
Junction Capacitance (typical)	40 pf
Noise equivalent power (typical)	1.8×10-14 W/Hz1/2
Reverse voltage (max)	20 V

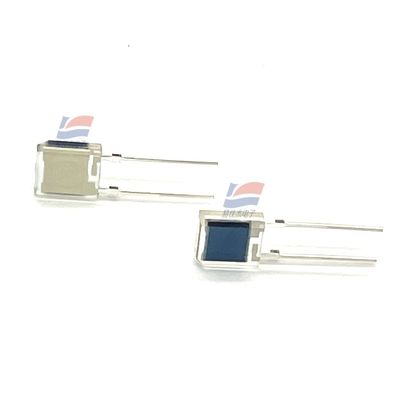

S6775 S6775-01 Silicon PIN Photodiode High-speed Response For Optical Switching Systems 0

Silicon PIN photodiode S6775-01

Plastic SIP (Single In-Line Package)

The S6775-01 is a silicon PIN photodiode with a large photoreceptor surface, molded into a visible-cut plastic SIP, for detection in the near-infrared range only. This silicon PIN photodiode features high sensitivity, high-speed response, and a large photoreceptor area.

Features:
- Visible light cut-off - High sensitivity - High speed response - Large photosensitive surface
- Plastic package: 7 × 7.8 mm
- Light-receiving surface size: 5.5 × 4.8 mm

Light-receiving side	5.5 × 4.8 mm
encapsulation	plastics
refrigeration	Non-cooled
Reverse voltage (max)	20 V
Spectral response range	700 to 1100 nm
Light sensitivity (typical)	0.68 A/W
Dark current (max)	10000 pA
Cut-off Frequency (typical)	15 MHz
