Highly Sensitive S7686 Si Photodiode with Peak Sensitivity Wavelength at 550 nm and Spectral Response Range of 480-660 nm

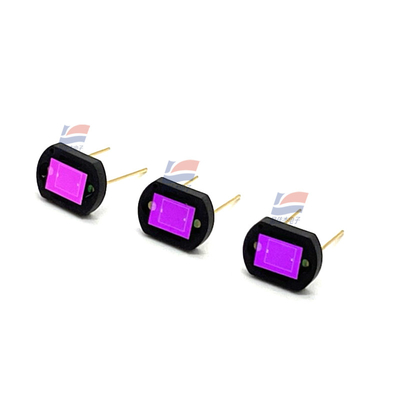

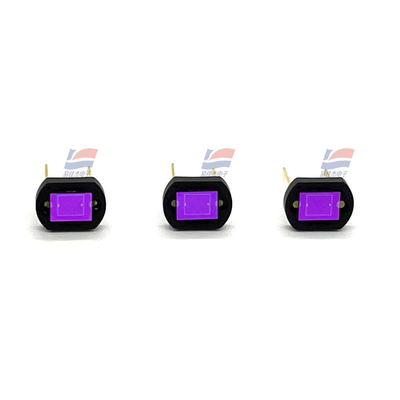

                                                                Si photodiode   S7686

                                        Photodiode with sensitivity close to spectral luminous efficiency

S7686 is a Si photodiode having a spectral response characteristic that is more similar to the human eye sensitivity (spectral luminous efficiency)
than our conventional visible-compensated sensors (S1133, etc.).

Features:

Spectral response analogous to CIE spectral luminous efficiency
Spectral response range: 480 to 660 nm
Peak sensitivity wavelength: 550 nm
Ceramic package for reliability
Active area: 2.4 × 2.8 mm
High-speed response: 0.5 μs (VR=0 V, RL=1 kΩ)
fs value: 8 % Typ. (vertical light input)

Applications:

Illuminometer
Luminance meter
