Product Details:
|
| Pressure Difference Range: | 20KPa To 250KPa | Power Supply Voltage Range: | 4.85VDC To 5.35VDC |
|---|---|---|---|
| Sensitivity: | 20mV/KPa | Response Time: | 1ms |
| Highlight: | Turbocharged Engine Control Pressure Sensors,Automotive System Pressure Sensors,MPX4250AP Pressure Sensors |
||
Product Description:

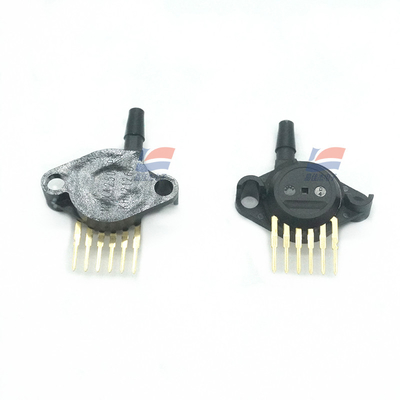

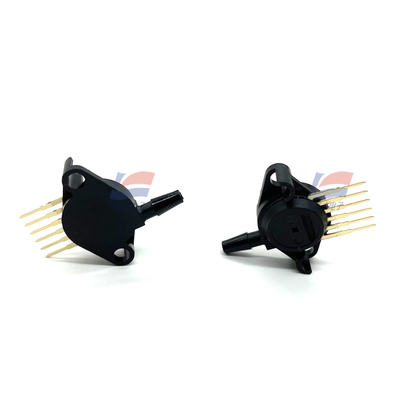

MPX4250AP And MPX4250DP Pressure Sensors For Automotive System Turbocharged Engine Control
Features:
MPX4250 is a single-port, manifold absolute pressure sensor with a 6-pin SIP package. This device is designed for the absolute pressure sensing application of the intake manifold in the engine control system. It can be used to calculate the amount of fuel required for each cylinder. This piezoresistive sensor is the most advanced single-chip silicon pressure sensor and can be used in a wide range of applications. It is applicable to microcontroller or microprocessor systems with A/D input. Combining advanced microfabrication technology, thin-film metallization and bipolar processing, it provides an accurate analog output signal proportional to the applied pressure.
On-chip signal regulation, temperature compensation and calibration
Within the range of 0°C to 85°C, the maximum error is 1.5%
Silicon shear stress-strain gauge
Temperature compensation from -40°C to 125°C
Compared with the existing hybrid modules, it is lighter in weight and smaller in size
Suitable for non-automotive applications
Pressure difference range :20KPa to 250KPa
Power supply voltage range :4.85VDC to 5.35VDC
Sensitivity :20mV/KPa
Response time :1ms
Application
Sensing and Instruments
Product type: Board computer interface pressure sensor
RoHS:
Pressure type: Absolute
Working pressure: 36 psi
Accuracy: 1.5%
Output type: Analog
Installation style: Through Hole
Working power supply voltage: 5 V
Port type: Single Radial Barbed
Packaging/Box: Unibody-6
Minimum operating temperature: -40 ° C
Maximum operating temperature: + 125 ° C
Series: MPX4250

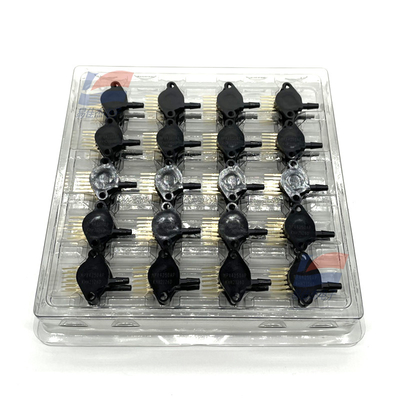

Packaging: Tray
Trademark: NXP Semiconductors
Working power supply current: 7 mA
Output voltage: 4.9V
Port size: 4.93mm
Product type: Board Mount Pressure Sensors
100
Subcategory: Sensors
Power supply voltage - Maximum: 5.35V
Power supply voltage - minimum: 4.85V
Part number alias: 935321182117
Unit weight: 3.376 g
Specifications:
| Working pressure | 36 psi |
| Accuracy | 1.5% |
| Output type | Analog |
| Installation style | Through Hole |
