Product Details:
|
| Flow Range (Full Scale): | +1000 Sccm | Output Voltage @ Trim Point: | 5 VDC @ 1000 Sccm |
|---|---|---|---|
| Null Voltage: | 1.00 ±0.10 VDC | Null Voltage Shift, Typ. +25° To 25°C, 25° To +85°C: | ±25 MV |
| Output Voltage Shift, Max. +25° To 25°C +25° To +85°C: | -5% Reading +5% Reading | Repeatability & Hysteresis, Max.: | ±1% Reading |
| Highlight: | 5 VDC Output Voltage Airflow Sensors,Industrial Applications Airflow Sensors,1000 sccm Airflow Sensors |
||

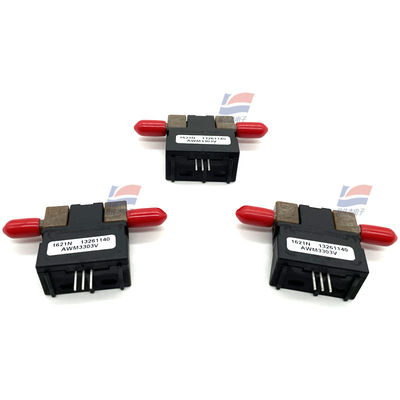

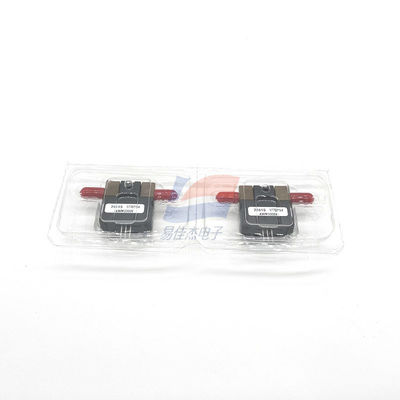

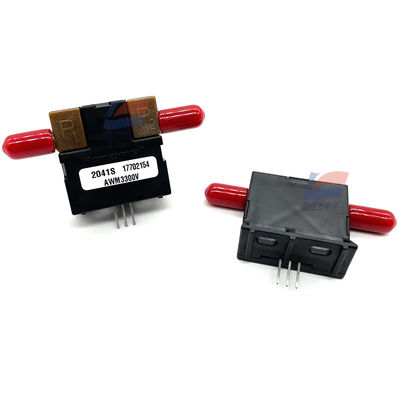

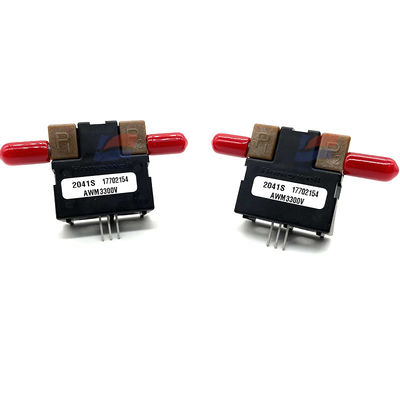

AWM3300V Airflow Sensors Microbridge Mass Airflow/Amplified:
Notes:
1. Initial warm-up time for signal conditioned circuitry is 1 minute max.
2. Output Voltage is ratiometric to supply voltage.
3. Temperature shifts when sensing differential pressure correlates to the density change of the gas over temperature. (See Application Note 1.)
4. Maximum allowable rate of flow change to prevent damage: 5 SLPM/1 sec.
| Temperature Range | Operating: 25° to +85°C ( 13° to +185°F); Storage: 40° to +90°C ( 40° to +194°F) |
| Termination | 2,54 mm (.100) centers, 0,635 mm (0.025) square |
| Weight (grams) | 10.8 |
| Shock Rating | 100 g peak (5 drops, 6 axes |
