Product Details:
|
| Flow Range (full Scale)1: | ±30 SCCM | Recommended Excitation Voltage: | 10 ±0.01 Vdc |
|---|---|---|---|
| Power Consumption: | 30 MW Typ. | Output At Laser Trim Point: | 8.5 MV ±1.5 MVdc At 25 SCCM |
| Null Output: | 0 MV ±1 MV | Null Output Shift (-25°C To 85°C): | ±0.20 MVdc |
| Highlight: | Laser Trim Point Air Flow Sensor,8.5 mV Air Flow Sensor,AWM42150VH Air Flow Sensor |
||

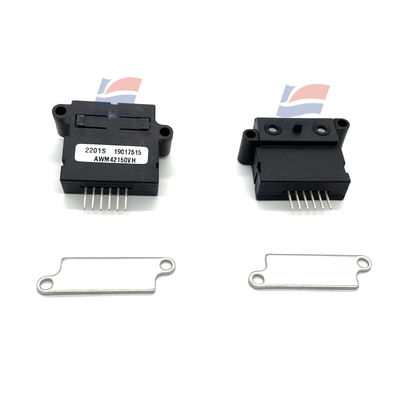

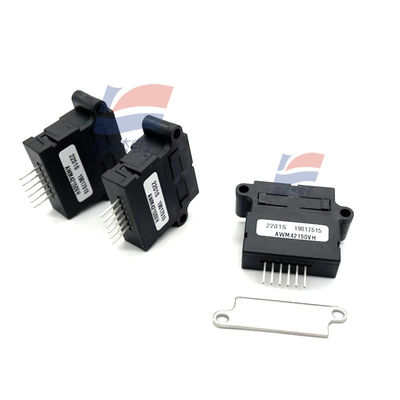

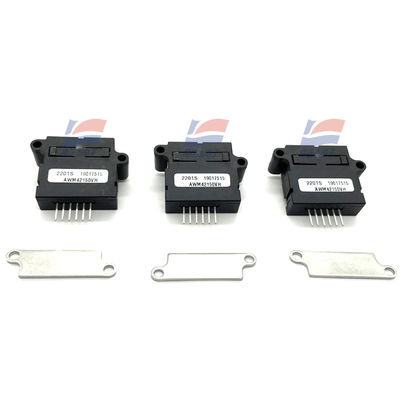

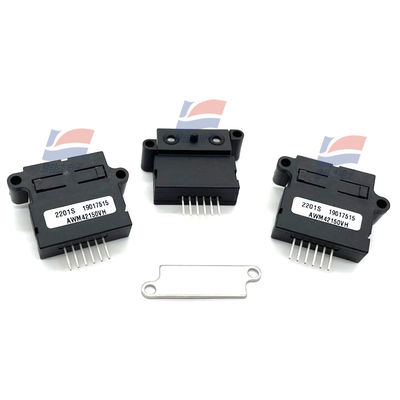

AWM42150VH Air Flow Sensor
FEATURES:
• Precision silicon micromachining
• Sensitivity to low flows (0.1 SCCM to 6 SLPM)
• Adaptable for use with higher flows
• Low power consumption allows for use in portable devices and battery-powered applications
• Analog output
• Standard 2,54 mm [0.10 in] mounting centers
• Laser-trimmed interchangeability
• Accurate sensing of low pressure
APPLICATIONS :
• Medical:
Respirators and ventilators- -
Oxygen concentrators and conservers
Anesthesia machines
• Industrial:
HVAC damper control
Gas analyzers
Low vacuum control
Process control
Leak detection equipment
Vent hoods
Gas metering
Chromatography
| Repeatability and hysteresis1 | ±0.35 % FSO typ |
| Pressure drop at full scale | 0.008 inH2 0 typ. |
| Response time2 | 1.0 ms typ. 3.0 ms max. |
| Overpressure | 17.2 bar [250 psi] max |
| Maximum flow pulse to prevent damage | 5 SLPM/s |
| Output load: NPN (sinking) PNP (sourcing) | 10 mA 20 mA |
