Product Details:
|
| Flow Range (full Scale)1: | +1000 SCCM | Calibration Gas: | Nitrogen |
|---|---|---|---|
| Recommended Excitation Voltage: | 10.000 ±0.010 Vdc | Power Supply: Minimum Maximum: | 8.000 Vdc 15.000 Vdc |
| Power Consumption: | 60 MW Max. | Output At Laser Trim Point: | 5 Vdc ±0.15 Vdc At 1000 SCCM |
| Highlight: | Laser Trim Point Air Flow Sensor,5 Vdc Air Flow Sensor,Nitrogen Calibration Gas Air Flow Sensor |
||

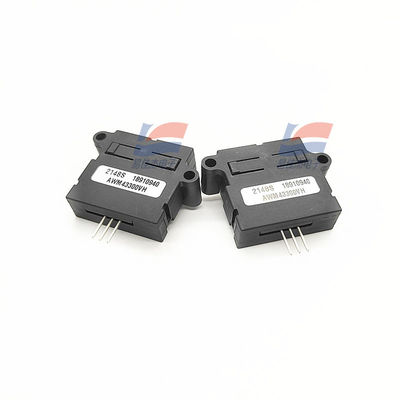

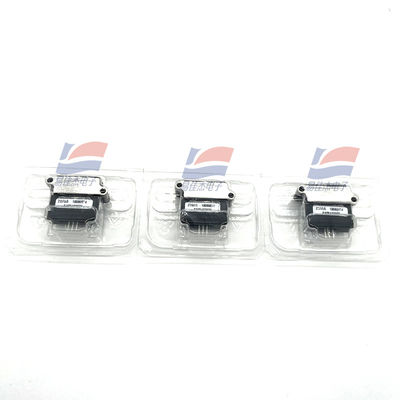

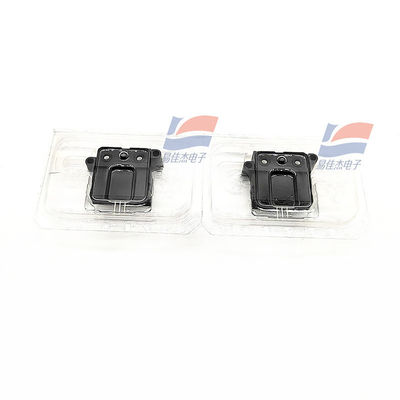

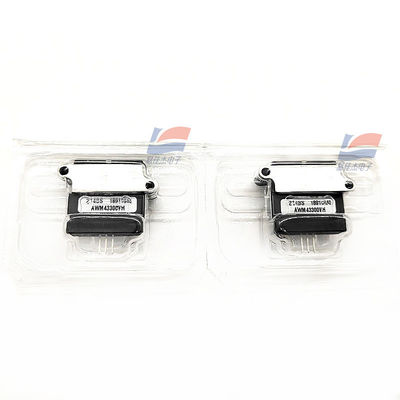

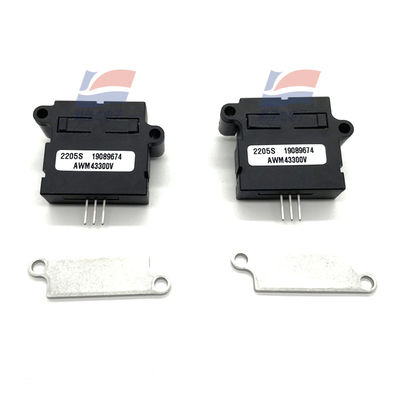

AWM43300V AWM43300VH Air Flow Sensor
FEATURES:
• Precision silicon micromachining
• Sensitivity to low flows (0.1 SCCM to 6 SLPM)
• Adaptable for use with higher flows
• Low power consumption allows for use in portable devices and battery-powered applications
• Analog output
• Standard 2,54 mm [0.10 in] mounting centers
• Laser-trimmed interchangeability
• Accurate sensing of low pressure
APPLICATIONS :
• Medical:
Respirators and ventilators- -
Oxygen concentrators and conservers
Anesthesia machines
• Industrial:
HVAC damper control
Gas analyzers
Low vacuum control
Process control
Leak detection equipment
Vent hoods
Gas metering
Chromatography
| Null output | 1.000 Vdc ±0.050 Vdc |
| Null output shift (-25°C to 85°C) | ±0.025 Vdc max. |
| Output voltage shift: 25°C to -25°C 25°C to 85°C | -5.0 % reading max. +6.0 % reading max. |
| Repeatability and hysteresis1 | ±0.5 % reading max. |
| Pressure drop at full scale | 1.02 inH2 0 typ. |
| Response time2 | 1.0 ms nom. |
| Overpressure | 10.3 bar [150 psi] |
| Maximum flow pulse to prevent damage | 5 SLPM/s |
| Storage temperature range | -40°C to 90°C [-40°F to 194°F] |
| Ratiometricity error | ±0.3 % reading nom |
