Product Details:
|
| Type: | Differential | Pressure Range: | ±5 Mbar | ± 500 Pa | ±2.0 InH2 O |
|---|---|---|---|
| Calibration Gas: | Air | Excitation Voltage3: | 8.0 Vdc Min./10 Vdc ±0.01 Vdc Typ./15 Vdc Max. |
| Full Scale Output: | 45 MV ±25 MV | Ratiometricity Error3: | ±0.30 %reading Typ. |
| Highlight: | Calibration Gas Air Flow Sensor,AWM92200V Air Flow Sensor |
||

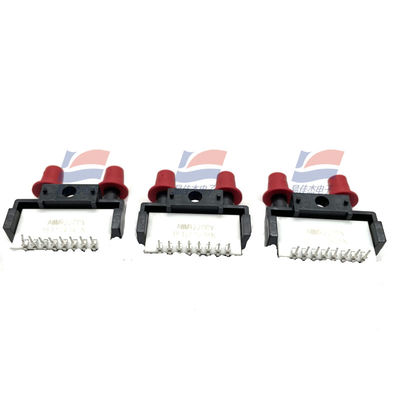

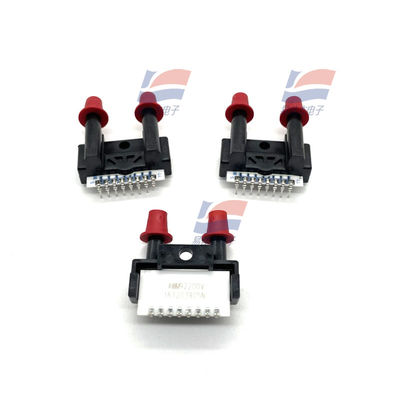

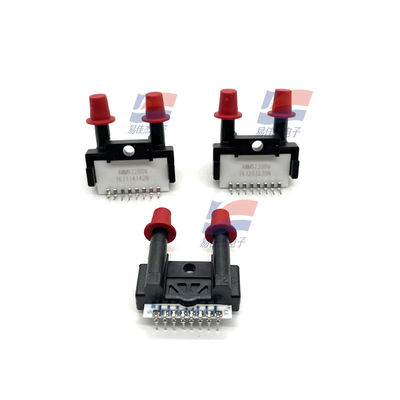

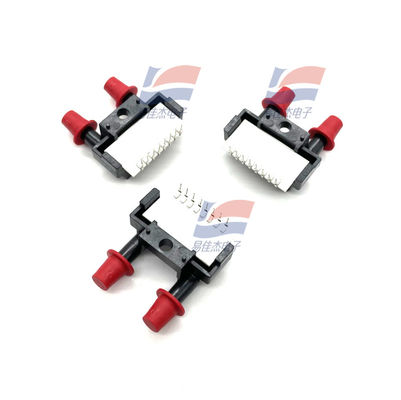

AWM92200V Air Flow Sensor
Airflow Sensors :
AWM90000 Series microbridge mass airflow sensors are available in two versions, mass flow and differential pressure.
The AWM92100V has a flow range of ±200 SCCM with a pressure drop of only 0.49 mbar | 49 Pa | 0.007 psi, typically. The AWM92200V is a differential pressure version that has a range of ±2 inH2 O.
The AWM90000 Series sensors have a 1 ms response time, operate with a supply voltage from 8.0 Vdc to 15.0 Vdc, while consuming only 50 mW of power. The compact plastic package will withstand a maximum overpressure of 1720 mbar | 72 kPa | 25 psi without compromising performance.
The sensor is well suited for use in portable devices and battery powered applications.
The AWM90000 Series provides customers with a combination of time-proven reliability, repeatable flow sensing, and the ability to customize the sensor functions to meet their specific application needs.
MedICAL:
• Continuous Positive Airway Pressure (CPAP) equipment
• Sleep apnea monitors
• Oxygen conservers
• Oxygen concentrators
• Nebulizers • Spirometers
INdUSTRIAL :
• Variable Air Volume (VAV) damper control
• Clogged filter detection
• Fuel to air ratio sensing
• Leak detection equipment
| Repeatability and hysteresis4 | ±0.1 %reading typ. |
| Response time | 3 ms typ. |
| Overpressure | 1720 mbar | 172 kPa | 25 psi max. |
| Vibration | 20 g, 10 Hz to 2000 Hz |
