Product Description:
XGZP6847D Pressure Sensor -100kPa... 0-1kPa... 1500kPa Is Used For Electronic Blood Pressure Monitors
Features:
Product Features
· Measurement range -100kPa... 0-1kPa... 1500kPa
· Gauge pressure type (positive pressure or negative pressure)
· Power supply voltage :2.5V to 5.5V
· Current consumption :5uA(for one measurement)
· Dormant state current :<100nA (25°C)
· 24-bit ADC, high resolution
· Temperature accuracy: ±0.5℃@25℃
It is suitable for non-corrosive gases
·I2C signal output, wide temperature compensation
"Application field"
Medical fields such as electronic blood pressure monitors, ventilators, oxygen generators, and monitors
· Atomizers, sprayers, negative pressure sensors and other consumer electronics fields
In the field of sports and fitness equipment such as massagers, massage chairs, and air mattresses
· Fields such as water heaters, oxygen water machines, beer machines, coffee machines, air pumps, vacuum pumps, pressure gauges, etc
"Overview"

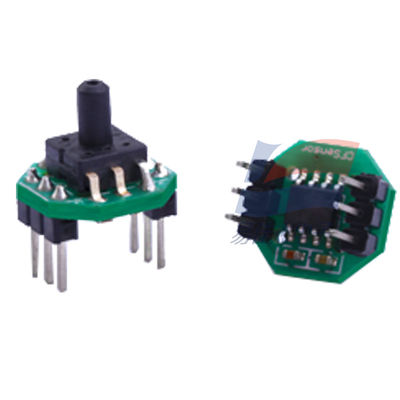

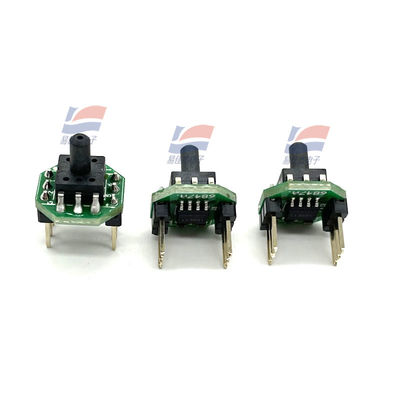

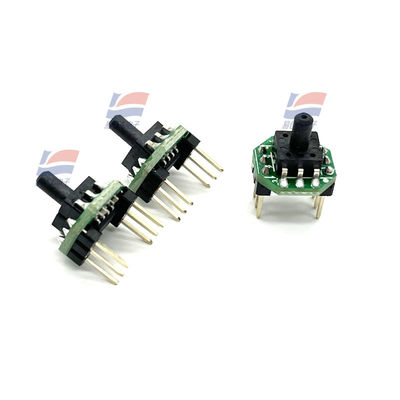

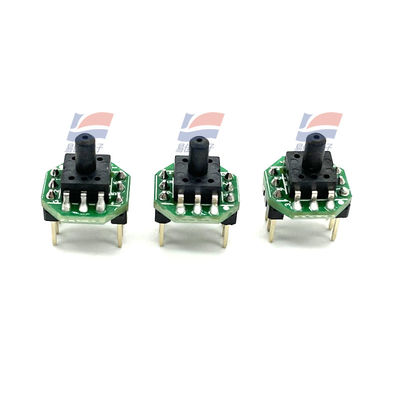

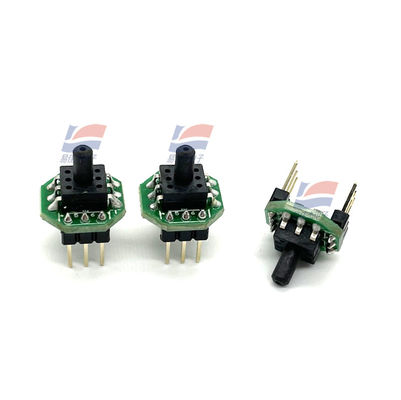

The XGZP6847D pressure sensor adopts a DIP-like packaging form. On both sides of the PCB board, there are SOP packaged pressure sensors and signals installed respectively
The processing circuit chip digitally compensates for the sensor's offset, sensitivity, temperature drift and nonlinearity, and generates a cycle with the supply voltage as a reference
The standard digital signal after calibration and temperature compensation.
The XGZP6847D pressure sensor is compact in size and easy to install, and is widely used in medical electronics, automotive electronics, consumer electronics, sports and fitness equipment,
Fields such as the Internet of Things
