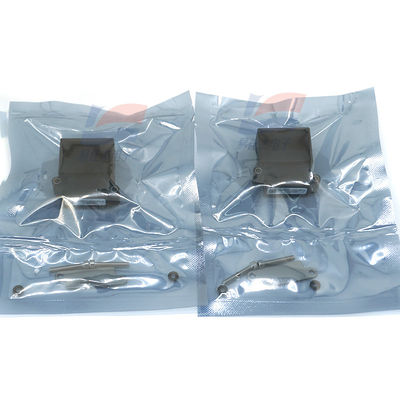

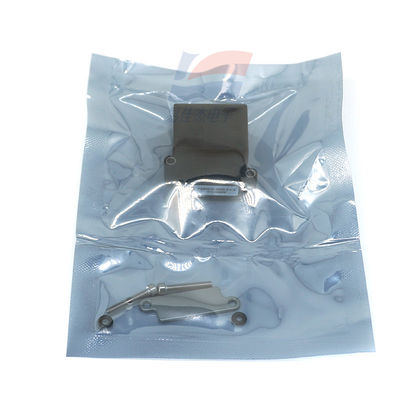

FS5001L-2000-EV-A Air Flow Sensor Oxygen Flow meters Ventilators Research Gas Delivery Systems

Large Image : FS5001L-2000-EV-A Air Flow Sensor Oxygen Flow meters Ventilators Research Gas Delivery Systems

Product Details:

Place of Origin:	USA
Model Number:	FS5001L-2000-EV-A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000pcs

Contact Now

FS5001L-2000-EV-A Air Flow Sensor Oxygen Flow meters Ventilators Research Gas Delivery Systems

Description

Flow Range:

0–2000 Sccm (Standard); 0–2000 Ml/min (Mass Flow)

Accuracy:

±1.5% Of Reading + 0.2% Of Full Scale (FS)

Repeatability:

±0.5% FS

Response Time:

≤100 Ms (T90)

Highlight:

2000 EV Air Flow Sensor

Research Air Flow Sensor

FS5001L-2000-EV-A Air Flow Sensor

FS5001L-2000-EV-A Air Flow Sensor

General Information:

Brand/Manufacturer: Siargo (Typical for FS series flow sensors)
Model: FS5001L-2000-EV-A
Product Type: Mass Flow Sensor for Gas
Measured Medium: Air, Nitrogen, or Other Non-Corrosive Gases (Customizable for specific gases)

Technical Parameters Table:

Parameter	Details
Flow Range	0–2000 sccm (Standard); 0–2000 ml/min (Mass Flow)
Accuracy	±1.5% of Reading + 0.2% of Full Scale (FS)
Repeatability	±0.5% FS
Response Time	≤100 ms (T90)
Pressure Rating	1 MPa (145 psi) Maximum Operating Pressure
Operating Temperature	-10°C to +55°C (-14°F to +131°F)
Storage Temperature	-20°C to +70°C (-4°F to +158°F)
Output Signal	0.5–5V DC (Analog) or RS485 (Digital, Modbus RTU Protocol)
Power Supply	12–24VDC (Typical: 24VDC, ≤50mA)
Connection Type	1/8" NPT Threaded Port or 6mm OD Tubing (Depends on "EV-A" suffix definition)
Calibration Gas	Air (Standard); N₂, O₂, etc., available upon request
Material	Wetted Parts: 316 Stainless Steel, PTFE Seals; Housing: Anodized Aluminum
Electrical Interface	6-pin Mini-DIN Connector (Standard)
Certifications	CE, RoHS Compliant; Optional Explosion-Proof Certifications (Upon Request)

Technical Features:

Sensing Technology:
- MEMS (Micro-Electro-Mechanical Systems) thermal dispersion technology (Thermal-D®) for high-precision mass flow measurement without temperature/pressure compensation.
Design Advantages:
- Nano-coating on the sensor surface for oil/water resistance and anti-fouling.
- Built-in temperature and pressure compensation for stable performance in varying environments.
Flow Calibration:
- Factory-calibrated for air; supports multi-gas auto-recognition (for gases with distinct thermal diffusivity).

Applications:

Industrial: Gas mixing systems, semiconductor manufacturing, chemical process control.
Analytical Instruments: Chromatography, gas analyzers, environmental monitoring equipment.
Medical & Laboratory: Oxygen flow meters, ventilators, research gas delivery systems.

Mechanical Dimensions:

Dimension	Value (Approx.)
Body Length	120 mm
Body Diameter/Width	38 mm
Weight	350 g
Mounting Orientation	Any (Recommended: Vertical for optimal accuracy)

Ordering Information:

Model Breakdown:
- FS5001L: Series code (Low-flow mass flow sensor).
- 2000: Flow range (0–2000 sccm).
- EV-A: Custom suffix (e.g., EV = Enhanced Version; A = Connector type/option).
