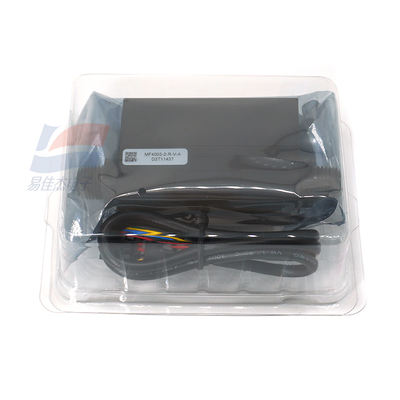

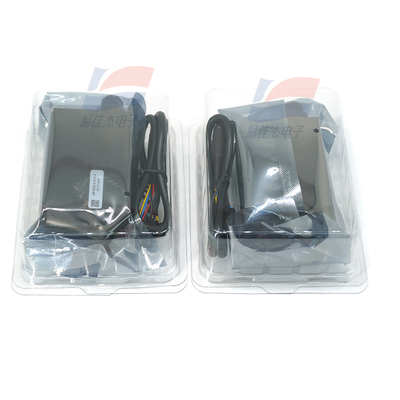

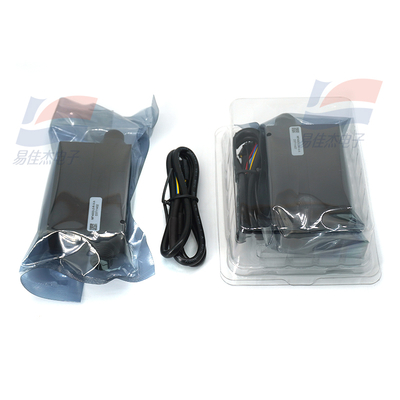

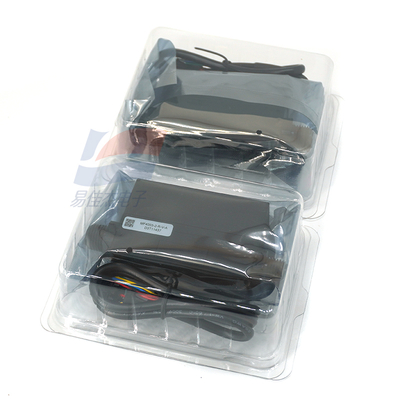

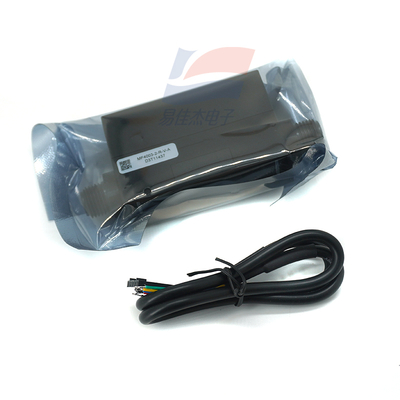

MF4003-2-R-V-A Gas Mass Flow Sensor For Air Quality Analyzers Emissions Monitoring

                          MF4003-2-R-V-A Gas Mass Flow Sensor For Air Quality Analyzers Emissions Monitoring

Product Features:

1. High Sensitivity: Optimized for low-flow applications (0–2 SLPM) with 100:1 turndown ratio .
2. Fast Response: 10 ms default response time enables real-time monitoring of dynamic processes .
3. Dual Output: Standard 0.5–4.5 VDC analog signal with optional RS485/RS232 for digital integration .
4. Robust Design: IP65-rated housing and corrosion-resistant materials ensure reliability in harsh environments .
5. Customizable Options:
   • Flow Range: Available in 2/5 SLPM for MF4003; 10–50 SLPM for MF4008 .
   • Interface: BSPT 1/4" (R thread) or quick-connect fittings (4/6/8 mm) .
   • Calibration: Supports gases like N₂, O₂, CO₂, and argon (contact manufacturer for custom gases) .
6. User-Friendly: 4-digit LED display shows instantaneous flow (SLPM) and cumulative flow (SL), with push-button parameter configuration .

Applications:

• Medical: Oxygen therapy systems, anesthesia machines, ventilators.
• Industrial: Process gas control, compressed air monitoring, semiconductor manufacturing.
• Environmental: Air quality analyzers, emissions monitoring.
• Research: Laboratory gas chromatography, small-scale chemical synthesis.

Installation & Operation Notes:

• Pipe Requirements: Install in straight pipe sections with ≥5× diameter upstream/downstream clearance .
• Gas Compatibility: For gases other than air (e.g., CO₂, N₂O), specify during ordering to ensure accurate calibration .
• Power Management: Ensure stable 8–24 VDC supply to minimize signal noise.
• Calibration: Recalibrate every 12–24 months for optimal accuracy .
