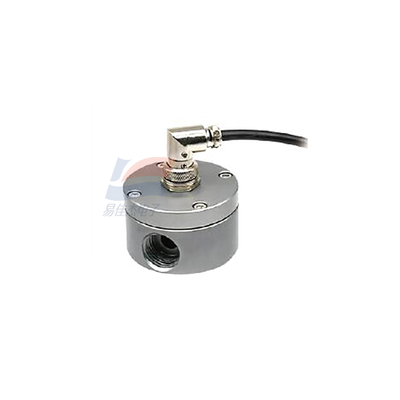

AFG1 High Precision Low Viscosity Micro Liquid Circular Gear Flow Meter Water Diesel Volumetric Flow Meter

             AFG1 High Precision Low Viscosity Micro Liquid Circular Gear Flow Meter Water Diesel Volumetric Flow Meter

• Product Usage:
  • Industrial Field: It is used for real - time monitoring of fluid transportation such as lubricating oil and diesel, which can help enterprises master the fluid flow status in the production process and ensure the normal operation of equipment.
  • Environmental Protection and Energy: It is applied to the accurate flow statistics in water treatment systems and energy metering, which is of great significance for environmental protection monitoring and energy management.
  • Laboratory and Transportation: It is used for fluid control of experimental equipment and fuel consumption monitoring of vehicles, which can provide accurate flow data support for laboratory experiments and help vehicles optimize fuel consumption.
• Product Characteristics:High - precision Measurement: The typical accuracy can reach ±1%FS, which is suitable for scenarios with strict requirements on metering accuracy, and can provide accurate flow data for various applications.
  • Good Viscosity Adaptability: It is specially designed for low - viscosity fluids such as water, diesel oil and alcohol, and can obtain relatively accurate measurement results in these fluid media.
  • Stable and Reliable: The gear is inlaid with stainless - steel beads, and the core contact materials are ETFE/PPS/SUS304, which are corrosion - resistant and wear - resistant, effectively extending the service life and having a low maintenance cost.
  • Wide - temperature Adaptability: The working temperature range is - 25℃~80℃, which can adapt to extreme industrial environments and ensure normal operation in different temperature conditions.
  • Strong Pressure Resistance: The pressure - bearing grade reaches 1.75MPa, which can be applied to high - pressure fluid transportation scenarios and has a wide range of application environments.
  • Flexible Installation: The measuring range covers 0.5~60L/min, supporting G1/4~G1 threads, which can be adapted to DN8~DN25 pipelines, and can be flexibly installed according to actual needs. In addition, the minimum model has a diameter of only 60.5mm, which is light in weight and convenient for installation in narrow spaces.
  • Convenient Integration: It adopts standard three - wire connection, provides pulse frequency output (5~24V DC), is compatible with PLC and industrial controllers, has a simple wiring method, and is convenient for system integration.
