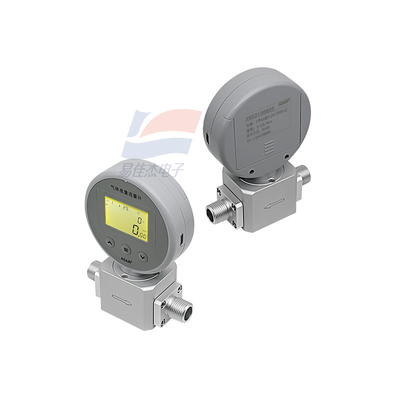

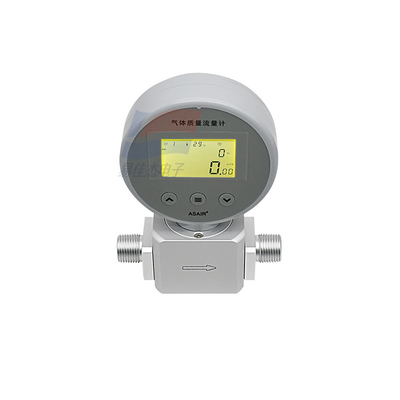

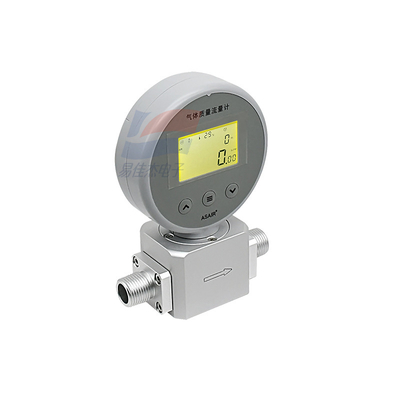

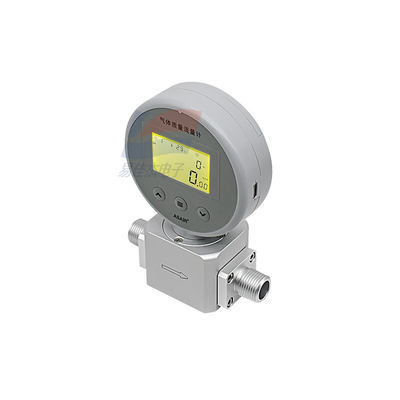

YJJ AMS2106 Thermal Mass Gas Flowmeter Can Replace MF5706 For Compressed Air And Oxygen Flow Measurement

Product Description:

YJJ AMS2106 Thermal Mass Gas Flowmeter Can Replace MF5706 For Compressed Air And Oxygen Flow Measurement

Features:

AMS2106 digital gas mass flowmeter series is based on the thermal principle. It calculates the mass flow of the gas by measuring the change in resistance. The product adopts the independently developed MEMS flow sensor chip, which has excellent accuracy over the entire range. It has outstanding performance, is stable and reliable, and features intuitive, precise, stable, high-temperature and low-temperature resistance, good linearity, and rapid response. It has two power supply options: battery power and external power supply, enabling flexible use and cumulative flow measurement, meeting the customers' demand for high cost-effectiveness of the product.

This series has various range options and is suitable for different application scenarios. Each product undergoes strict testing and calibration before leaving the factory to ensure high-quality delivery.

Each product undergoes strict testing and calibration before leaving the factory to ensure high-quality delivery.

AMS2106 is used to measure the mass flow of dry, clean, non-corrosive gases (excluding flammable and explosive gases), such as air, nitrogen, oxygen, and carbon dioxide. It can be widely applied in fields like university research, fire protection, environmental monitoring, tobacco, smart agriculture, food, and medicine.

Power supply method: 3 AA batteries / 9 - 24V DC

Measurement range: 0.5 - 50, 5 - 500 mL/min,

0.02 - 2, 0.1 - 10, 0.25 - 25, 0.5 - 50 1~100, 2~200, 3~300L/min

Accuracy: ±3%FS

Repeatability: 0.5%FS

Operating environment: -10 to 60℃

Output mode: RS485

Dimensions: 124.2*98*42mm
