Product Description:

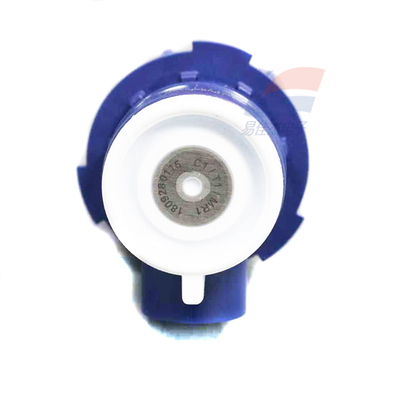

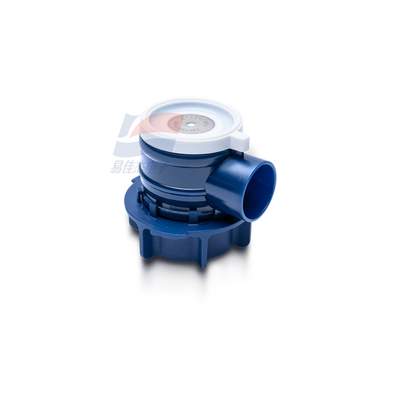

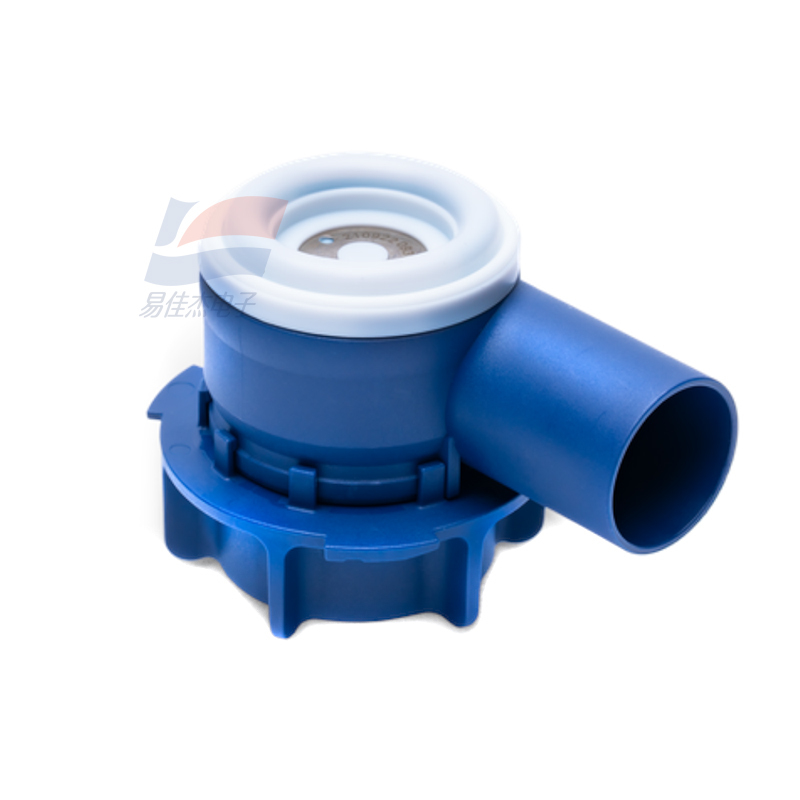

YJJ 161175 New Model C1 Repeated Exhalation Valve With Diaphragm
Features:
Diameter (ID, OD [mm]) / Description
Material
1 Connector OD15, ventilator side PSU
2 Tubing-PVC
3 Connectors for tubing Differential pressure measurement PSU
4 Direction index--
5 Individual serial number--
6 Connector OD22/ID15, patient sidePSU
7 Flap-PET Details Flow range 0 to 180 l/min (short term 260 l/min) Dead space
< 11 ml (functional)
Resistance
< 0.027 cmH2O/(l/min) over the complete flow range (-180 l/min to 180 l/min)
Weight
Approx. 14 g without tubes, 68 g with 188 cm tubes, 89 g with 260 cm tubes, 110 g with 330 cm tubes
Material
Complies with ISO 10993-1:2009 (biocompatibility) and Directive 2011/65/EU (RoHS).
Does not contain natural rubber latex, DEHP, or BPA.
Accuracy
For calibrated flow sensor volume-related parameters:
--C1/T1/MR1/C2/C3/C6 ventilators: ± 10% or ± 10 ml (whichever is greater)
--G5/S1 ventilators: ± 15% or ± 20 ml (whichever is greater)
- original adult disposable flow sensor is applicable to the following models:
GALILEO Galileo
RAPHAEL Raphael --G5
C Series
Suitable for supply of - Galileo/Galileo/Raphael/Arabella/G5/C1/C2/C3
- original C1/C2 oxygen battery 396200
C1 original battery 369108
C2 original battery
C1, T1, MR1, high-efficiency filter PN161236
C2, C3, high-efficiency filter 160216
C2 repeat exhalation valve with diaphragm 160245 New machine C1 repeat exhalation valve with diaphragm 161175 - Raphael Galileo exhalation valve 151228 GALINEO electromagnetic valve (new) 394043 RAPHAEL (Raphael) electromagnetic valve 394045 - (Raphael) original adult flow sensor 155363/281637 - (Raphael) original neonatal flow sensor 155000 - original repeatable adult flow sensor 155362
Specifications:
| Temperature |
Operating: -20°C to 50°C (-4°F to 122°F)
Storage: -20°C to 60°C (-4°F to 140°F)
|
| Operating time |
28 days or depending on hospital infection control protocols, patient secretions, and nebulization of medication |
| Accessory |
Tube clip, calibration adapter ID22 / OD15 |
| Identification |
Individual serial number |
| Regulatory |
Medical has established and applies a quality management system and fulfills ISO 13485 and ISO 9001. The flow sensor has been designed to comply with: Medical Device Regulation (EU) 2017/745, EN 980, EN 1041, ISO 5356-1, ISO 10993-1, ISO 14971 |
