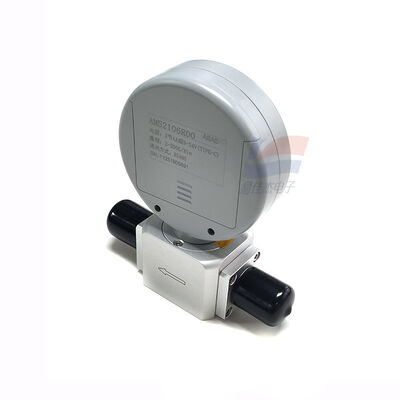

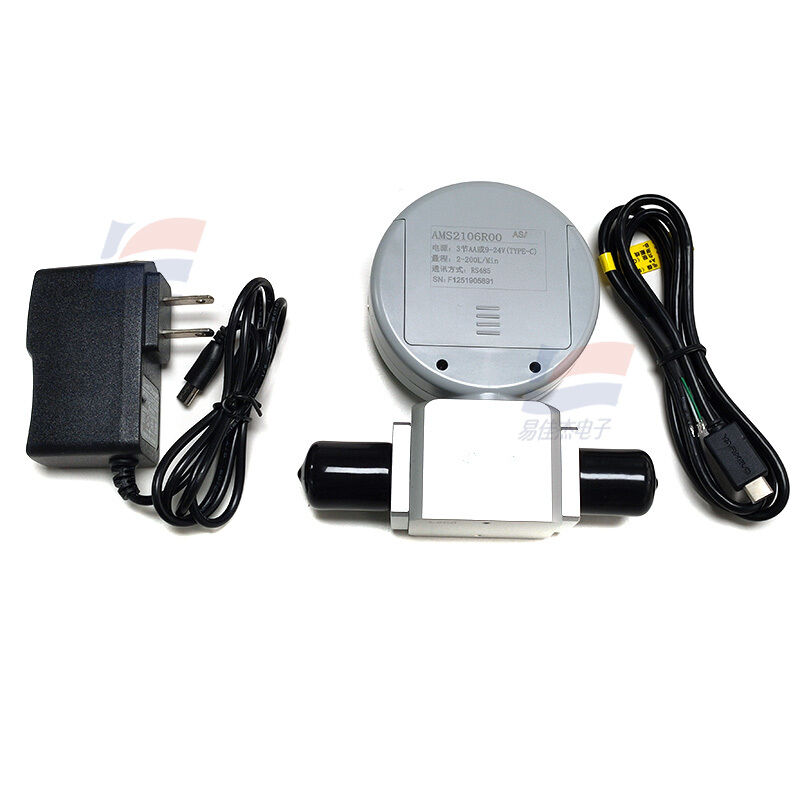

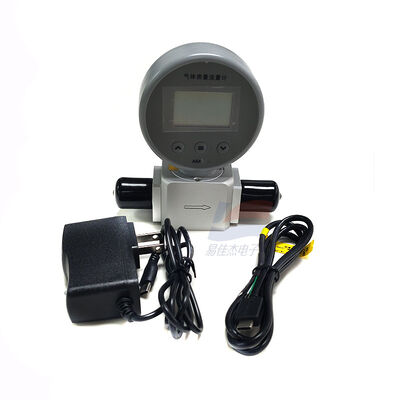

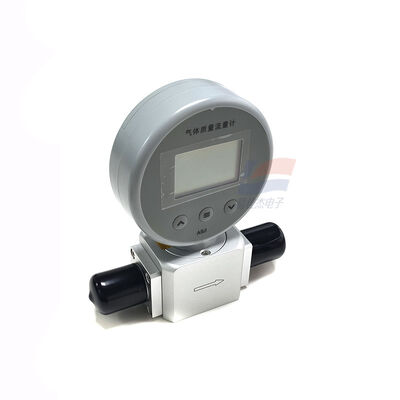

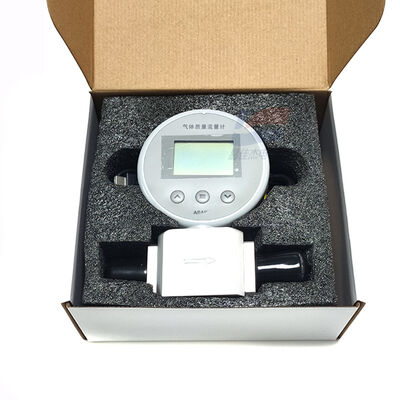

AMS2106R00 Digital Display Gas Mass Flow Meter Thermal Principle Multiple Gases

AMS2106R00 Digital Display Gas Mass Flow Meter Thermal Principle Multiple Gases

Product Description
The AMS2106 series of digital gas mass flow meters is based on the thermal principle, measuring the mass flow rate of gases by calculating the change in resistance. The product utilizes a proprietary MEMS flow sensor chip, offering excellent accuracy across the entire range, outstanding performance, and reliable stability. It features intuitive, precise, and stable operation, high and low temperature resistance, good linearity, and fast response. With both battery and external power supply options, it offers flexible use and cumulative flow measurement capabilities, meeting customers' demands for high cost-effectiveness. This series is available in various flow ranges, suitable for different application scenarios. Each product undergoes rigorous testing and calibration before shipment to ensure high-quality delivery.

Digital Gas Mass Flow Meter
• Integrated measurement of mass flow and temperature
• Measurement range from 0–50 mL/min to 0–300 L/min with good repeatability
• Supports measurement of various gases
• Configurable parameters
• Standard Modbus-RTU communication
• Segmented LCD display
• Can be powered by battery or 9–24V DC power supply
• Default NPT connection, G thread or other interfaces can be customized according to customer requirements
