FS1015CL-100-ISO-C Thermal gas mass Flow Sensor Interface ISO 15mm

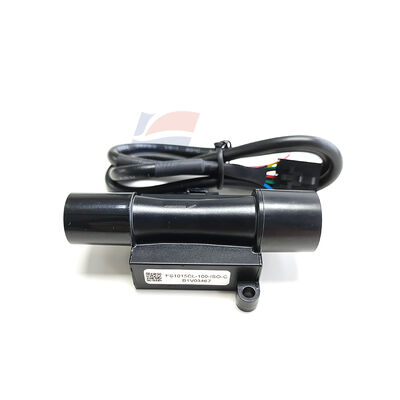

Large Image : FS1015CL-100-ISO-C Thermal gas mass Flow Sensor Interface ISO 15mm

Product Details:

Place of Origin:	USA
Brand Name:	Siargo
Model Number:	FS1015CL-100-ISO-C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000PCS/Month

Contact Now

FS1015CL-100-ISO-C Thermal gas mass Flow Sensor Interface ISO 15mm

Description

Full Scale:

100 SLPM

Medical Quick-connect Interface:

ISO 15mm

Measuring Range:

0–100 SLPM

Accuracy:

±2.0% Of Reading

Highlight:

ISO 15mm thermal gas flow sensor

medical air flow sensor with warranty

thermal mass flow sensor interface

FS1015CL-100-ISO-C Thermal gas mass Flow Sensor Interface ISO 15mm

Typical Applications:

1. Ventilators/Anesthesia Machines: Oxygen, air, and CO₂ mixed gas flow monitoring
2. Endoscopes: CO₂ pneumoperitoneum flow control
3. Medical Gas Analyzers: Precise flow sampling
4. Other Clean Gases: Nitrogen, argon, etc. (calibration required)

Speicification:

Response Time	≤8 ms (typical)
Output Signal	Analog 0.5–4.5 VDC (linearly corresponding to 0–100% flow); Digital I²C
Power Supply	5 VDC, approx. 50 mA
Pressure Loss	Typical 600 Pa@100 SLPM
Pressure Resistance	Maximum 0.2 MPa (29 psi)
Operating Temperature	0–50°C; Humidity < 95% RH (non-condensing)
Material	Polycarbonate (PC), Silicon Nitride, Medical Grade Epoxy
Dimensions / Weight	Approx. 76 × 33 × 28 mm / 21.5 g

FS1015CL-100-ISO-C Thermal gas mass Flow Sensor Interface ISO 15mm 0
