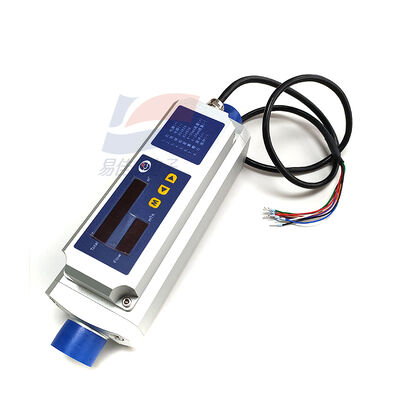

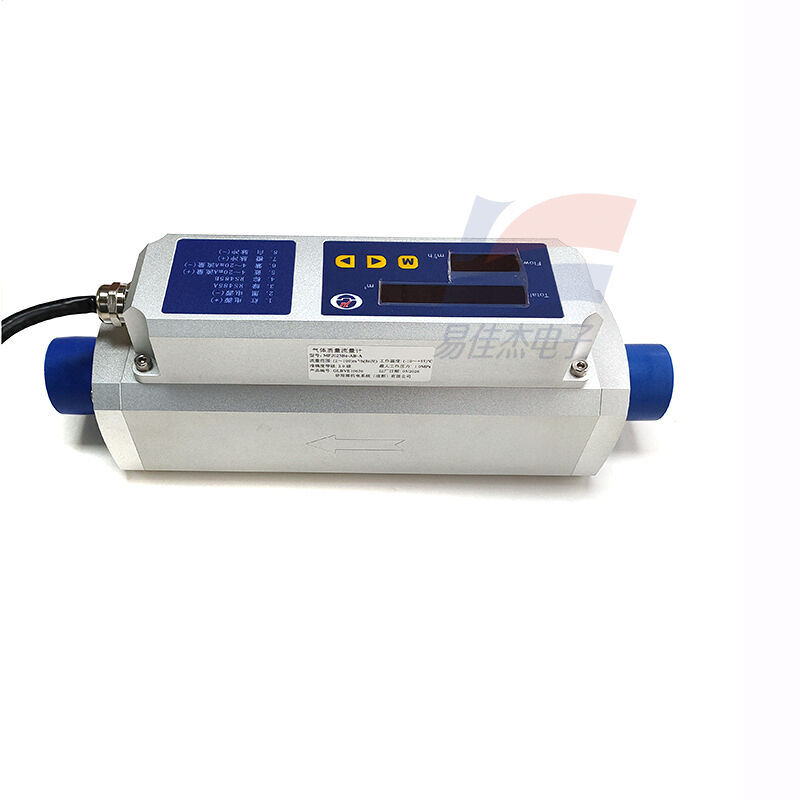

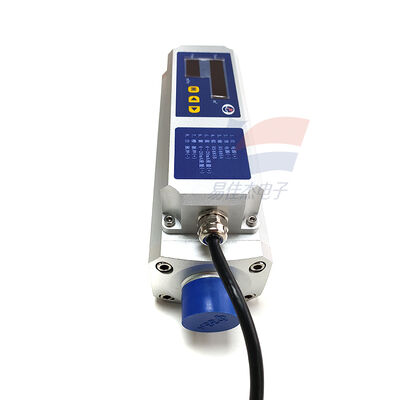

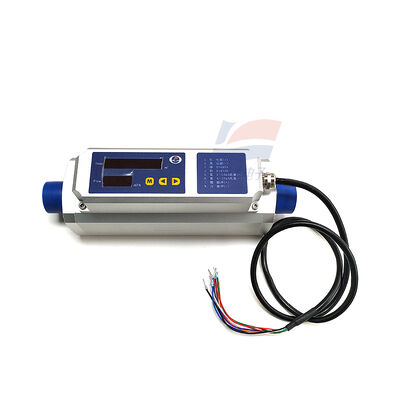

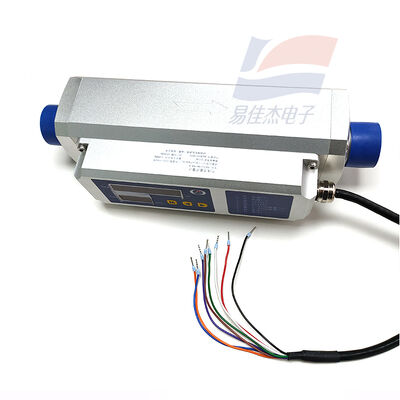

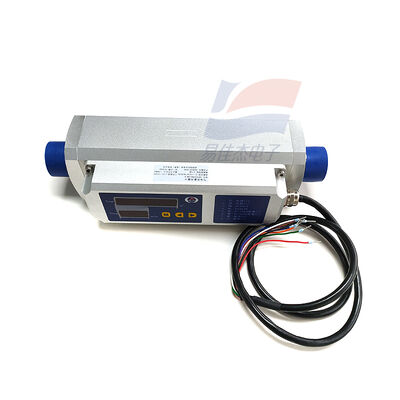

MF2025BE-AB-A Gas Mass Flowmeter Integrated Display Thermal Mass

MF2025BE-AB-A Gas Mass Flowmeter Integrated Display Thermal Mass
MF2025BE-AB-A Gas Mass Flowmeter Integrated Display Thermal Mass MF2025BE-AB-A Gas Mass Flowmeter Integrated Display Thermal Mass MF2025BE-AB-A Gas Mass Flowmeter Integrated Display Thermal Mass MF2025BE-AB-A Gas Mass Flowmeter Integrated Display Thermal Mass MF2025BE-AB-A Gas Mass Flowmeter Integrated Display Thermal Mass MF2025BE-AB-A Gas Mass Flowmeter Integrated Display Thermal Mass

Large Image :  MF2025BE-AB-A Gas Mass Flowmeter Integrated Display Thermal Mass

Product Details:
Place of Origin: China
Brand Name: YJJ
Model Number: MF2025BE-AB-A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Box
Delivery Time: 3-5Workingdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000PCS/Month
Contact Now

MF2025BE-AB-A Gas Mass Flowmeter Integrated Display Thermal Mass

Description
Measurement Range (DN25): Standard 2–100 M³/h Accuracy: ±(2.0% + 0.5% FS)
Range Ratio: 50:1 (Wide Range) Output Combination: 4–20 MA + RS485
Highlight:

thermal mass flowmeter with display

,

medical gas flow sensor

,

integrated display mass flowmeter

MF2025BE-AB-A Gas Mass Flowmeter Integrated Display Thermal Mass



Working Principle and Features
1. Principle:** MEMS thermal mass flow sensing; measures mass flow directly, requiring no temperature or pressure compensation.


Features:
* Integrated design; compact and easy to install
* Bidirectional measurement capability; excellent stability
* Supports networking (RS485) and local display



Typical Applications
* Industrial compressed air / nitrogen / oxygen metering
* Environmental emission monitoring; gas-fired boilers; heat treatment furnaces
* Process gas control in semiconductor, photovoltaic, and pharmaceutical industries



Specification:

Measured Media Air, nitrogen, oxygen, argon, CO₂, and other non-toxic, non-corrosive gases
Signal Output 4–20 mA Analog + RS485 (Modbus-RTU)
Display 4-digit LED (Instantaneous Flow), 8-digit (Total Flow)
Power Supply 24 VDC ±10%
Operating Temperature -20 to +60°C
Humidity 15%–90% RH (Non-condensing)
Protection Rating IP65 (Suitable for outdoor installation)
Material Aluminum alloy (Body), 304 Stainless steel (Gas-contacting parts)



MF2025BE-AB-A Gas Mass Flowmeter Integrated Display Thermal Mass 0
