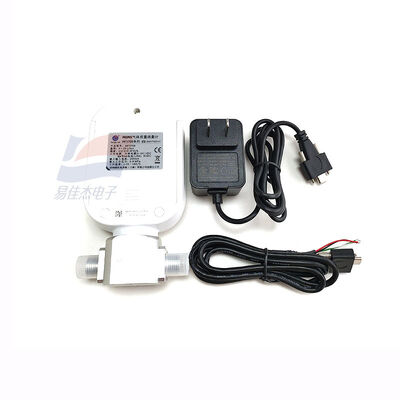

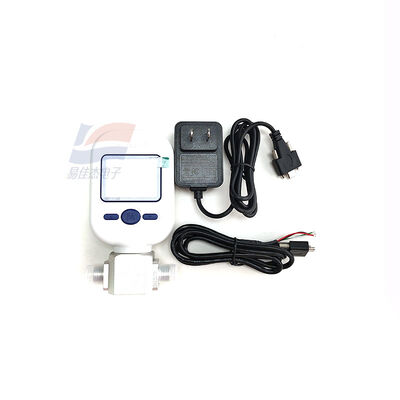

MF5706-G-20-B-A MEMS Thermal Gas Mass Flow Meter for Medical Food Industrial and Environmental Applications

Large Image : MF5706-G-20-B-A MEMS Thermal Gas Mass Flow Meter for Medical Food Industrial and Environmental Applications

Product Details:

Place of Origin:	USA
Model Number:	MF5706-G-20-B-A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable

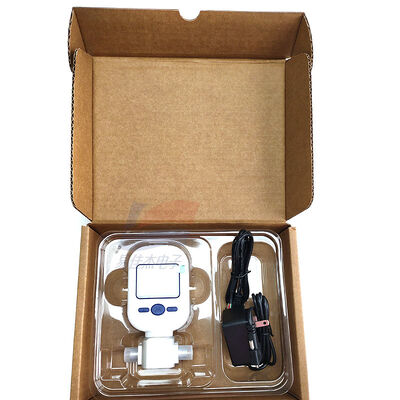

Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

MF5706-G-20-B-A MEMS Thermal Gas Mass Flow Meter for Medical Food Industrial and Environmental Applications

Description

Measuring Range:	0 ~ 20 SLPM (L/min)	Accuracy:	±(2.0 + 0.5FS)%
Repeatability:	≤0.5%	Response Time:	≤2 Sec
Turndown Ratio:	80:1	Power Consumption:	≤10 MW
Highlight:	MEMS thermal gas flow meter , Medical air flow sensor , Industrial gas mass flow meter

MF5706-G-20-B-A MEMS Thermal Gas Mass Flow Meter for Medical Food Industrial and Environmental Applications

Applications:

Medical: Hospital oxygen supply monitoring and metering.
Food & Beverage: Nitrogen purging, inert gas protection for packaging.
Industrial: Compressed air, gas blending, process flow control.
Environmental: Emission monitoring, gas analysis instruments.
Laboratory: Precision gas flow calibration and research.

Product Model	MF5706-G-20-B-A
Working Principle	MEMS Thermal Mass Flow (No T/P Compensation)
Measuring Range	0 ~ 20 SLPM (L/min)
Accuracy	±(2.0 + 0.5FS)%
Repeatability	≤0.5%
Response Time	≤2 sec
Turndown Ratio	80:1
Power Supply	4×AA Battery (LR6) or 5~15VDC External Power
Power Consumption	≤10 mW
Battery Runtime	≥60 days (continuous use)
Output Signal	RS485 Modbus RTU (Standard)
Display	LCD (Rotatable)
Display Units	Instant: SLPM; Cumulative: NCM
Resolution	Instant: 0.01 SLPM; Cumulative: 0.001 NCM
Connection	G1/4” (BSPP/NPT) Thread
Working Pressure	≤0.8 MPa
Working Temperature	-10℃ ~ +55℃
Storage Temperature	-20℃ ~ +65℃
Pressure Loss	600 ~ 2000 Pa
Protection Grade	IP50
Wetted Material	Copper (Non-corrosive Gases)
Dimensions (L×W×H)	67mm × 40mm × 32mm
Weight	≈350g

MF5706-G-20-B-A MEMS Thermal Gas Mass Flow Meter for Medical Food Industrial and Environmental Applications 0
