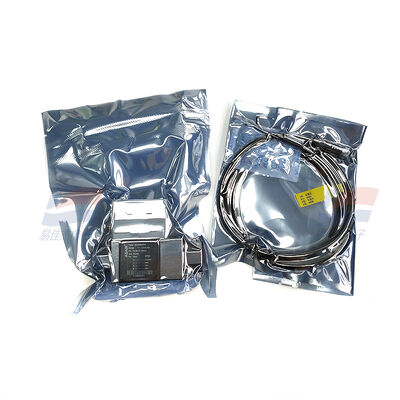

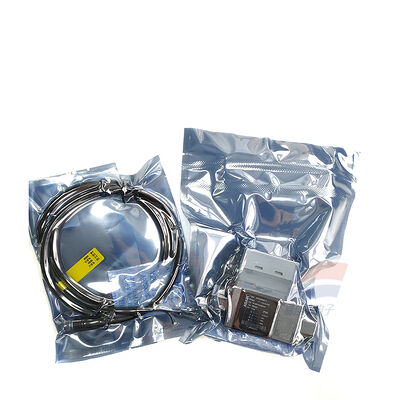

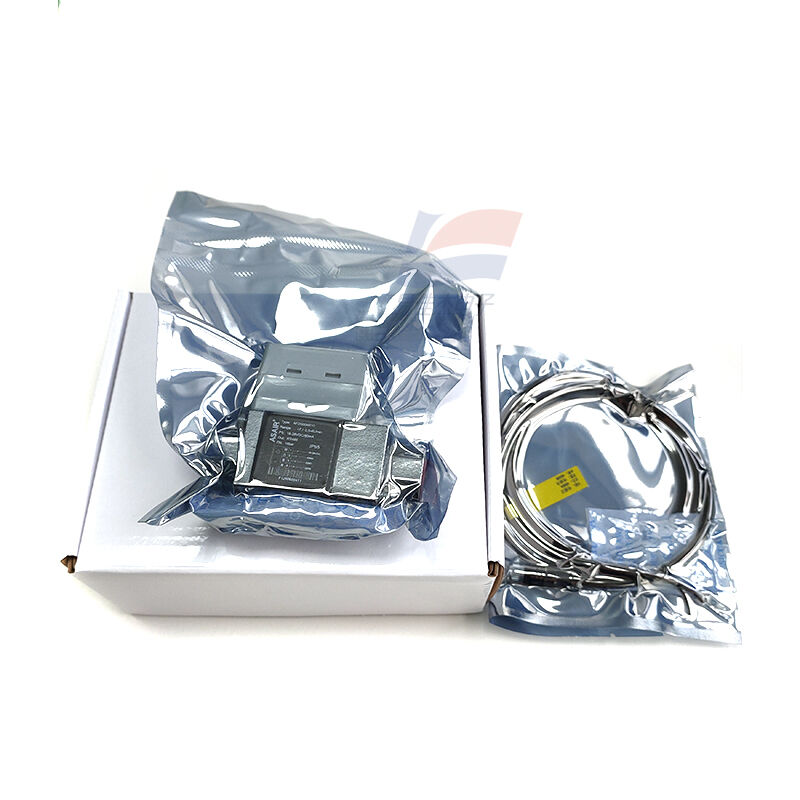

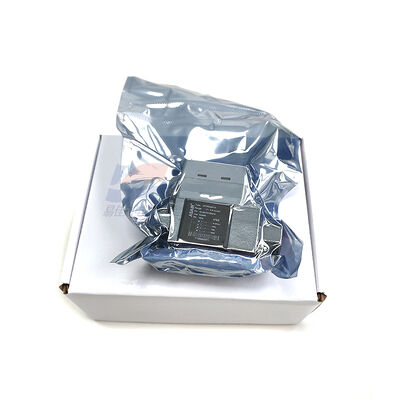

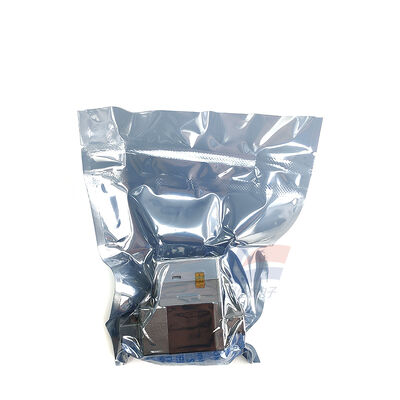

AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread

AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread
AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread

Large Image :  AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread

Product Details:
Place of Origin: China
Brand Name: YJJ
Model Number: AFD5004R10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Package
Delivery Time: 3-5Workingdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000pcs/Month
Contact Now

AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread

Description
Supply Voltage: 18–28 VDC Measurement Accuracy: Flow Accuracy < ±3.0% FS
Medium Temperature: 0–90°C Ambient Operating Temperature: -10°C To +65°C
Highlight:

Vortex-shedding liquid flow meter RS485 output

,

Medical air flow sensor RC3/8 thread

,

Liquid flow meter with warranty

AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread



Model Breakdown
AFD5004: Product series + flow range specification; flow range: 0.5–4 L/min (measurement of very low liquid flow rates)
R: Thread type = RC3/8 (British Standard Taper Pipe Thread—internal, DN10 pipe size)
10: Output signal is RS485 (Modbus-RTU); includes local digital display; no temperature sensing function



Specification:

Pressure rating Rated 10 bar; maximum short-term pressure resistance 16 bar
Wetted materials PPS engineering plastic and 304 stainless steel
Communication RS485 Modbus RTU
Supported baud rates 4800/9600/19200/115200 bps; configurable device address (1–32)
Housing Includes digital flow rate display; does not include temperature measurement
Wiring 4-core cable (Power +, Power -, 485A, 485B)



Comparison of available output models in the same series
AFD5004A10: Rc3/8 thread, 4–20 mA analog output, with display
AFD5004V10: Rc3/8 thread, 1–5 V voltage output, with display
AFD5004N10: Rc3/8 thread, NPN switch output
AFD5004P10: Rc3/8 thread, PNP switch output



AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread 0
