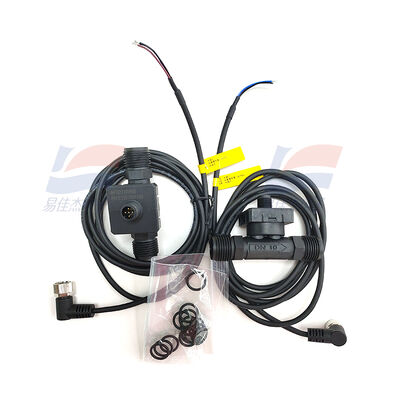

AFD2110W00 Vortex Shedding Water Flow Sensor Small Scale M12 5-pin Straight Connector

AFD2110W00 Vortex Shedding Water Flow Sensor Small Scale M12 5-pin Straight Connector

Product Features
* No internal moving parts; lifespan far exceeds that of Hall-effect impeller flow meters
* Minimal pressure loss; suitable for low-flow water circulation systems
* Excellent temperature compensation; measurement accuracy remains stable despite water temperature fluctuations
* Food-grade PPS flow-path housing; compatible with purified water, water heaters, and medical-grade pure water
* M12 5-pin plug-in connector; facilitates easy OEM equipment integration

Typical Application Scenarios

Water flow monitoring for residential/commercial wall-hung boilers and instant water heaters
Circulating water flow detection for central air conditioning, underfloor heating, and chiller units
Medical dialysis, pure water systems, and laboratory liquid metering
Closed-loop flow control for heat recovery equipment and small industrial water-cooled chillers

Model Distinctions (for Selection)
AFD2110A00: Flow range 1.8–32 L/min; 4–20 mA current output
AFD2106W00: 0.5–10 L/min; 0–10 V output (low-flow model)
AFD2120W00: 5–85 L/min; DN15 large-bore version

Specification:
