YJJ AFD2110W00 1.8 - 32L/min Vortex Water Flow Sensor Household Appliances Plumbing Systems

YJJ AFD2110W00 1.8 - 32L/min Vortex Water Flow Sensor Household Appliances Plumbing Systems
YJJ AFD2110W00 1.8 - 32L/min Vortex Water Flow Sensor Household Appliances Plumbing Systems YJJ AFD2110W00 1.8 - 32L/min Vortex Water Flow Sensor Household Appliances Plumbing Systems YJJ AFD2110W00 1.8 - 32L/min Vortex Water Flow Sensor Household Appliances Plumbing Systems YJJ AFD2110W00 1.8 - 32L/min Vortex Water Flow Sensor Household Appliances Plumbing Systems YJJ AFD2110W00 1.8 - 32L/min Vortex Water Flow Sensor Household Appliances Plumbing Systems YJJ AFD2110W00 1.8 - 32L/min Vortex Water Flow Sensor Household Appliances Plumbing Systems

Large Image :  YJJ AFD2110W00 1.8 - 32L/min Vortex Water Flow Sensor Household Appliances Plumbing Systems

Product Details:
Place of Origin: CHINA
Brand Name: YJJ
Model Number: AFD2110W00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Box pack
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2200

YJJ AFD2110W00 1.8 - 32L/min Vortex Water Flow Sensor Household Appliances Plumbing Systems

Description
Product Description: YJJ AFD2110W00 1.8 - 32L/min Vortex Water Flow Sensor Household Appliances Plum: 11.4 - 12.6V DC Measurement Range: 1.8 - 32 L/min
Flow < 50% FS: Full Scale ±1% Output Signal: 0 - 10V Linear Voltage
Medium Temperature: -20℃ - 90℃ Storage Temperature: -30℃ - +85℃
Protection Level: IP65
Highlight:

YJJ AFD2110W00 water flow sensor

,

1.8 - 32L/min vortex sensor

,

household appliances flow sensor

Product Description:

YJJ AFD2110W00 1.8 - 32L/min Vortex Water Flow Sensor Household Appliances Plumbing Systems



Features:

I. Model Interpretation AFD2110W00

AFD2: Turbulent Flow Liquid Flow Sensor Series

110: Range Code 1.8 - 32 L/min

W: Output Signal 0 - 10V Voltage Output

00: Standard Conventional Model without Additional Functions Guangzhou Aosong Electric...

II. Core Electrical & Flow Parameters

Power Supply Voltage: 11.4 - 12.6V DC

Measurement Range: 1.8 - 32 L/min (DN10 threaded pipe diameter, G1/2 external thread)

Measurement Accuracy

Flow < 50% FS: Full Scale ±1%

Flow ≥ 50% FS: Reading ±2%

Output Signal: 0 - 10V Linear Voltage (The higher the flow, the higher the voltage)

Medium Temperature: -20℃ - 90℃ (Clear water, low viscosity coolant, dilute liquid)

Working Environment Temperature: -30℃ - +85℃

Storage Temperature: -30℃ - +85℃

Structural Characteristics

Principle: Von Karman Turbulent Flow, No Moving Rotor Inside, Less Likely to Be Stuck by Scale or Sand

Pressure Loss Extremely Low, Does Not Increase Pump Load

Resistant to Impurities, Long-term No Zero Point Drift

Main Body PPS Engineering Plastic, Resistant to Clear Water and Weakly Corrosive Media

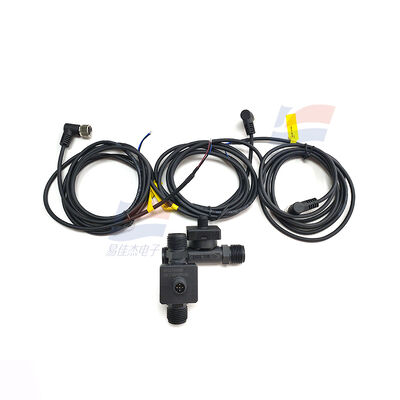

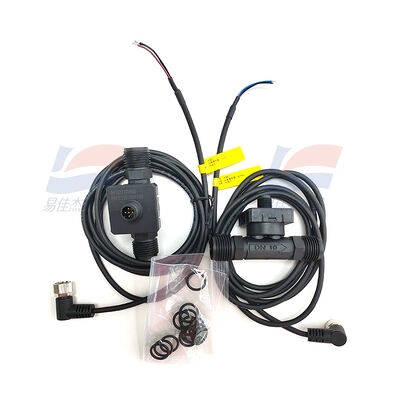

Mechanical Interface: DN10, G1/2 External Thread Straight Through Installation

Protection Level: IP65, Suitable for Damp Environment Inside Equipment

Life Span: No Worn Components, Continuous Operation for More Than 5 Years Stable

III. Product Core Advantages

No Moving Rotor, Scale and Sand Are Less Likely to Get Stuck, Low Maintenance Cost

Small Temperature Drift, Stable Measurement in Cold and Hot Alternation Waterway

0 - 10V Standard Analog Quantity, Can Be Directly Connected to PLC, Temperature Control Board, and Instruments

Low Pressure Loss, Heat Pump, Water Heater Will Not Increase Energy Consumption

Compact Size, OEM Complete Machine Built-in Installation Convenient

IV. Main Application Scenarios

1. Household Appliances and Plumbing (Most Popular)

Gas/Electric Water Heater Flow Detection, Water Supply Ignition, Water Cut-off Protection

Air Source Heat Pump, Floor Heating Water Circulation Flow Monitoring, Water Shortage / Low Flow Alarm

Wall-mounted Boiler, Instant Drinking Water Machine Flow Measurement

2. HVAC Ventilation and Central Air Conditioning

Chilled Water Unit, Cooling Water, Freezing Water Flow Monitoring

Prevent Flow Insufficient Leading to Evaporator Freezing, Compressor Overload Protection

Building Thermal Recovery System Flow Statistics, Energy Consumption Calculation

3. Medical Equipment

Dialysis Machine, Pure Water Machine, Medical Irrigation Fluid Flow Quantitative Control

Medical Cooling Waterway Flow Monitoring

4. Industrial Cooling Equipment

Battery Water Cooling, Hydrogen Energy Tank Cooling Circuit Flow Monitoring

Laser Equipment, Welding Machine Cooling Waterway Flow Protection

5. Small Chemical / Pure Water Equipment

Methanol, Ethanol, Low Viscosity Dilute Solution Flow Monitoring

Laboratory Circulating Water, Small Water Purification Equipment Flow Measurement



Specifications:

110 Range Code 1.8 - 32 L/min
W Output Signal 0 - 10V
00 Standard Conventional
Power Supply Voltage 11.4 - 12.6V DC
Measurement Range 1.8 - 32 L/min
