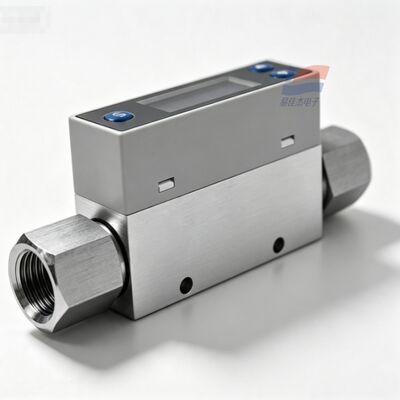

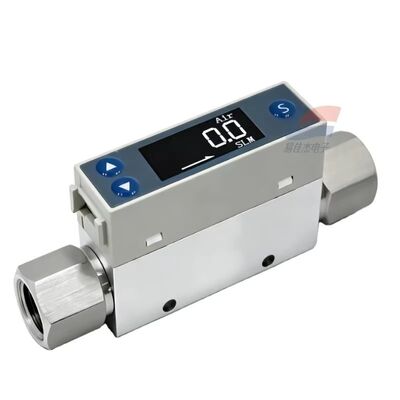

YJJ TC5200-04-C1000-A-C6-P3 MEMS Mass Flow Meter G1/4 Thread for Laboratory Gas-path Monitoring

Product Description:

YJJ TC5200-04-C1000-A-C6-P3 MEMS Mass Flow Meter G1/4 Thread for Laboratory Gas-path Monitoring

Features:

I. Basic Performance Parameters
Sensing Principle: MEMS micro-electromechanical thermal type, directly measures the mass flow rate of standard gas, unaffected by temperature and pressure fluctuations
Optional Flow Ranges: 0-10 sccm ~ 0-200 SLM; TC5200-04-C1000-A-C6-P3 range 0-1000 sccm
Measurement Accuracy: ±2.0 %FS
Repeatability: ≤1.0%FS
Zero Point Drift: ≤0.5%FS
Response Time: ≤5ms, rapid response to changes in airflow
Resolution: 0.1%FS
Permitted Mediums: Air, Nitrogen, Argon, Oxygen, Carbon Dioxide, Helium, etc., dry and clean non-corrosive gases
II. Electrical Specifications
Power Supply: 9-24 VDC DC power supply
Overall Power Consumption: Working current < 30mA, low power consumption suitable for long-term power supply
Signal Output (A represents complete output)
Analog: 4-20mA current output, 0-5V voltage output
Digital Communication: RS485-Modbus-RTU protocol
C6: 6-pin electrical terminal interface
P3: Relay flow alarm switch output
Screen Configuration: Integrated LCD liquid crystal display, real-time display of instantaneous flow, cumulative flow, and medium temperature
III. Pressure Resistance and Environmental Parameters
Pipe Interface: -04 = G1/4 internal thread; Large flow version can be selected as G1/2 interface
Maximum Pressure Resistance: 1.0 MPa
Operating Temperature: -20℃ ~ +70℃
Storage Temperature: -30℃ ~ +80℃
Applicable Humidity: 0-95% RH, no condensation water
Valve Body Material: Aviation aluminum alloy, wear-resistant, low pressure loss structure
IV. Core Functional Features
Built-in Flow Total Accumulation Function
Support for Multi-Gas Parameter Switching Calibration
Front Panel Buttons, on-site one-click configuration of range, alarm threshold, and communication address
Compact Size, Pipeline Installation, Suitable for Narrow Experimental Gas Path
OEM Customizable PNP/NPN Transistor Alarm Output
V. Industry Application Scenarios (Export Title Keyword List)
Laboratory gas supply pipeline, semiconductor process gas monitoring, welding shielding gas (argon, nitrogen), compressed air energy consumption monitoring, new energy battery testing equipment, medical gas pipeline, biogas tail gas detection, laser cutting gas supply, leak detection equipment, university fluid experiment instruments
