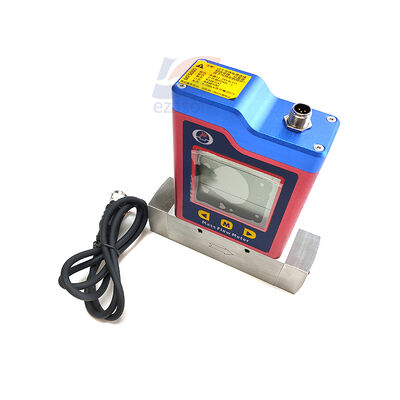

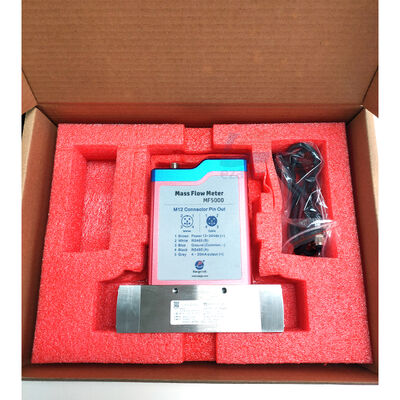

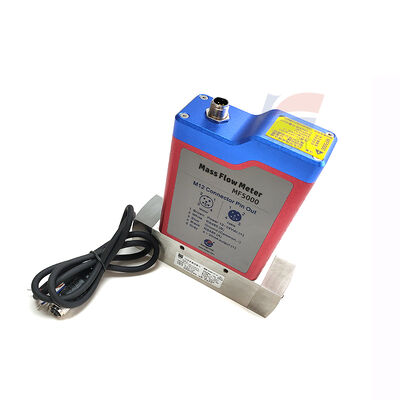

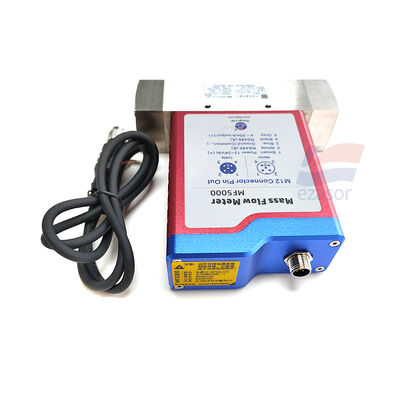

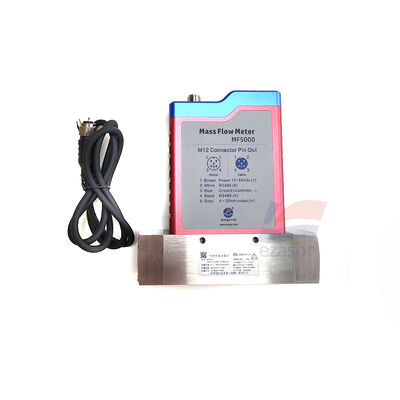

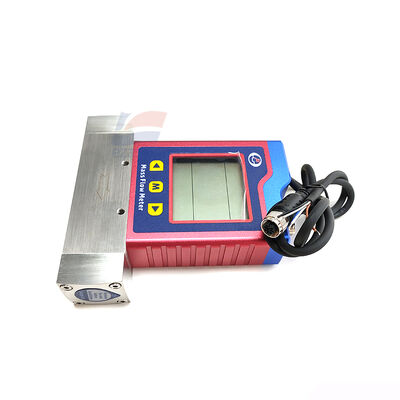

MF5012-N4F-E-3-300-15-AB-D-A MEMS Thermal Gas Mass Flow Meter LCD Local Display Screen

Large Image : MF5012-N4F-E-3-300-15-AB-D-A MEMS Thermal Gas Mass Flow Meter LCD Local Display Screen

Product Details:

Place of Origin:	USA
Brand Name:	Siargo
Model Number:	MF5012-N4F-E-3-300-15-AB-D-A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1000pcs/Month

Contact Now

MF5012-N4F-E-3-300-15-AB-D-A MEMS Thermal Gas Mass Flow Meter LCD Local Display Screen

Description

Measurement Principle:

MEMS Thermal

Accuracy:

±(1.5 + 0.2% FS)

Power Supply:

12–24 VDC

Operating Temperature:

-20 To +60°C

Highlight:

MEMS thermal gas flow meter

medical air flow sensor with LCD display

gas mass flow meter with local display

MF5012-N4F-E-3-300-15-AB-D-A MEMS Thermal Gas Mass Flow Meter LCD Local Display Screen

Applications: Mass flow monitoring for industrial gases, air compressors, oxygen, nitrogen, and other gases; suitable for use in semiconductor, laboratory, and process gas monitoring scenarios.

Specification:

N4F Port	NPT 1/2" female thread
E Electrical version	Standard (12–24 VDC power supply)
3–300 Flow range	3–300 SLPM (Standard Liters per Minute); calibrated for air (0–300 SLPM)
15 Max. operating pressure	15 bar (1.5 MPa)
AB Output signal	Dual output (4–20 mA + RS485)
D	With local LCD display
A	Calibration medium: Air calibration

MF5012-N4F-E-3-300-15-AB-D-A MEMS Thermal Gas Mass Flow Meter LCD Local Display Screen
