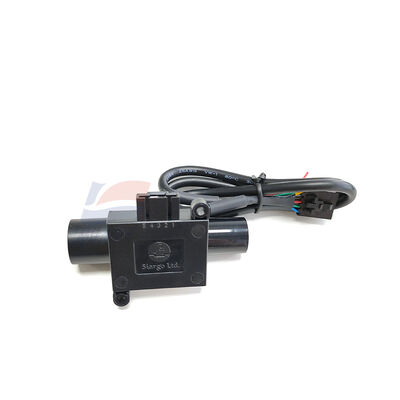

YJJ FS1015CL-150-ISO-O MEMS Mass Flow Sensor 0-150SLPM for Ventilator & Test Lung

Product Description:

YJJ FS1015CL-150-ISO-O MEMS Mass Flow Sensor 0-150SLPM for Ventilator & Test Lung

Features:

FS1015CL-150-ISO-O (Siargo MEMS Oxygen Mass Flow Sensor)

O = Oxygen (oxygen calibration); ISO = ISO15mm Medical Standard Interface; Range: 0 - 150 SLPM
Core parameters

| Model | FS1015CL-150-ISO-O |
| Measured Medium | Oxygen (O calibration), can also measure air, nitrogen, argon and other clean and dry gases |
| Flow Range | 0 - 150 SLPM (standard liters per minute) |
| Range Ratio | 100:1 |
| Accuracy | ±(2.0% reading + 0.5% FS) |
| Repeatability | ≤0.5%FS |
| Response Time | ≤8 ms |
| Supply Voltage | 5VDC ±5% |
| Working Current | Approximately 10mA |
| Output Signal | 0.5 - 4.5VDC linear analog output + I2C digital output |
| Maximum Pressure Loss (Full Scale) | 1300 Pa |
| Maximum Working Pressure | 0.2 MPa |
| Working Temperature | -10 ~ +55 ℃ |
| Storage Temperature | -20 ~ +70 ℃ |
| Working Humidity | <95% RH, no condensation, no freezing |
| Mechanical Interface | ISO15mm medical standard cannula interface |
| Electrical Interface | 5Pin socket, standard 0.5m cable |
| Weight | 21.5 g |
| Calibration | Oxygen calibration (O version); default air calibration as A version |
| Compliance | CE, RoHS, REACH, EMC IEC61000 |

Product features

1. MEMS thermal sensing chip, **directly measures mass flow rate without temperature and pressure compensation**
2. ISO15mm medical interface, plug-and-play, designed specifically for ventilators and anesthesia machines
3. Low pressure loss, fast response, suitable for real-time flow monitoring in medical equipment
4. Dual output: analog voltage + I2C digital signal, convenient for MCU acquisition
5. Compact and lightweight, facilitating equipment integration

Typical applications

Medical ventilators, anesthesia machines, oxygen generation equipment, oxygen flow monitoring, medical gas circuit control
