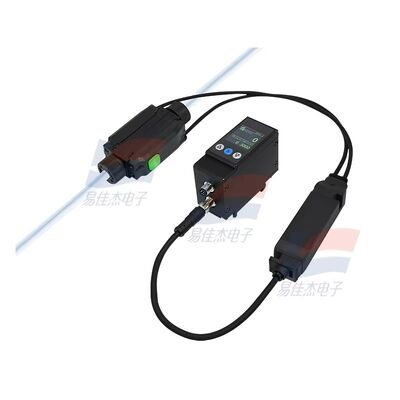

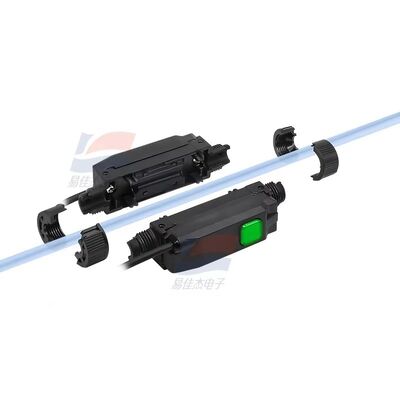

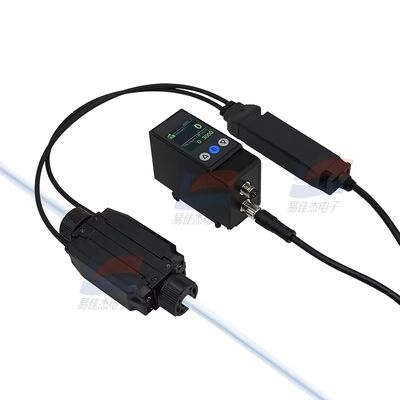

YJJ AFU2063 Ultrasonic Liquid Flow Sensor 0-3000ml/min RS485 Modbus for Ultra-Pure Liquid Monitoring

Product Description:

YJJ AFU2063 Ultrasonic Liquid Flow Sensor 0-3000ml/min RS485 Modbus for Ultra-Pure Liquid Monitoring

Features:

AFU2 ultrasonic liquid flow sensor, based on the ultrasonic time difference method to measure liquid flow, is suitable for medical, laboratory, industrial fluid control and other scenarios. It features non-contact measurement, fast response, high accuracy, and easy installation. The following are the structured parameters and application descriptions:
Core technical parameters (ASAIR AFU2)
Parameter Specification Remarks
Measurement principle Ultrasonic time difference method Non-contact measurement, no contact with the fluid, no pollution, no pressure drop
Measurement object Water, alcohol, oil and other low-viscosity liquids Not suitable for high-bubble, high-suspended solid liquids
Measurement range 0–3000 mL/min (0–3 L/min) Range covers micro-flow to small-flow scenarios
Accuracy ±2% FS High measurement data consistency
Repeatability ≤1% FS Minor measurement error in multiple measurements
Response time ≤100 ms Quick feedback on flow changes, suitable for dynamic control
Operating temperature -10–60℃ Adapted to common liquid conditions
Operating pressure 0.05–0.3 MPa Meet the measurement requirements of low-pressure liquid systems
Operating humidity 15%–90% RH (non-condensation) Avoid high humidity condensation affecting performance
Output signal 1–5 V analog voltage / 4–20 mA current (optional) Adapted to PLC, data acquisition devices, etc.
Power supply voltage 12–24 V DC Adapted to industrial and laboratory power sources
Interface specification 6.35 mm (British 1/4) Adapted to standard hose connections
Shell material Plastic Lightweight design, easy installation
Protection level IP40 Basic dustproof, suitable for indoor installation
Expected lifespan 5 years (typical) Normal working conditions
Core purpose and typical application scenarios
Medical and health field
Infusion / blood transfusion monitoring: Real-time measurement of infusion flow rate to ensure accurate medication dosage, trigger alarms in case of abnormalities.
Respiratory machines / anesthesia machines: Monitoring liquid agent delivery flow rate to ensure treatment safety.
Dialysis equipment: Measuring dialysis fluid flow, optimizing treatment parameters.
Laboratory and analysis instruments
Chemical analysis: Precisely control reagent addition flow rate to improve experimental repeatability.
Biopharmaceuticals: Cultivation medium and additive flow monitoring in fermentation tanks and reactors, ensuring production process stability.
Water quality testing: Flow control during water sample pretreatment to ensure accurate detection data.
Industrial fluid control
Precision chemical: Micro-volume raw material addition flow monitoring to reduce costs and improve product quality.
Electronic manufacturing: Cleaning liquid, developing liquid, etc. Flow control for semiconductor and PCB production processes.
Food and beverage: Precise measurement of additives, seasonings, etc. to ensure product taste consistency.
Smart home and civilian
Coffee machine / water dispenser: Precise control of liquid outflow, enhancing user experience.
Humidifier / water purifier: Monitoring liquid flow to achieve intelligent start-stop and quantitative output.
Key features and selection tips
Advantages: Ultrasonic non-contact measurement, no wear, no blockage, no pressure drop, suitable for clean liquids; fast response, suitable for dynamic flow monitoring; easy installation, no pipe breaking required, low maintenance cost.
Limitations: Measurement accuracy will decrease for high-bubble, high-suspended solid liquids; ensure the inner wall of the pipeline is clean and free of severe scaling; not suitable for high-temperature, high-pressure, and highly corrosive liquids (requires special protection).
Selection suggestions: Choose the appropriate model based on the liquid type; select 4–20 mA current output model for remote monitoring scenarios; additional protection is required for outdoor / high-humidity environments.
