Product Details:
|
| Spectral Response Range: | 340 To 850 | Spectral Resolution (FWHM) (typical Value).: | 12 Nm |
|---|---|---|---|
| Spectral Resolution (FWHM) (maximum).: | 15 Nm | Refrigeration: | Non-cooled |
| Highlight: | C12880MA,Micro Spectrometer Ultra Compact |
||

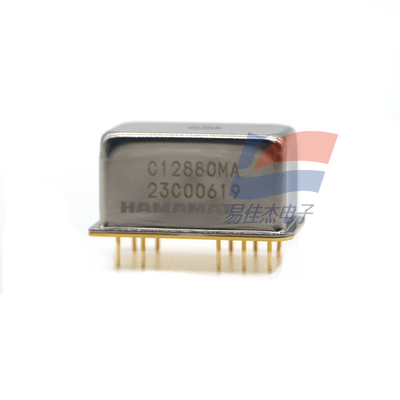

C12880MA Mini Spectrometer Micro Spectrometer Ultra Compact Fingertip Size For A Variety Of Devices
The C12880MA is a high-sensitivity, ultra-compact (fingertip sized) spectrometer head. The C12880MA supports the long wavelength region (up to 850 nm). This product is suitable for integration into a variety of compact devices.
Features
- Fingertip size: 20.1 × 12.5 × 10.1 mm
- Weight: 5 g
- Spectral response range: 340 to 850 nm
- High sensitivity
- Spectral resolution: 15 nm max.
- Supports synchronized integration (electronic shutter function)
- For integration into mobile measurement equipment
- Wavelength conversion factor is listed on test result sheet.
- Hermetic package
| Built-in sensor | CMOS linear image sensor with a slit |
| The total number | 288 pixels |
| Measurement conditions | Typ. Ta=25 ℃, unless otherwise noted |
| Encapsulation type | TO-10 |
