Product Details:
|
| Photographic Area Is: | φ5 Mm | Number Of Pixels: | 1 |
|---|---|---|---|
| Encapsulated: | Metal | Encapsulation Type Is: | TO-8 |
| Reverse Voltage (Max.): | 50V | Spectral Response Range Is: | 320 To 1060 Nm |
| Highlight: | S3071,Large Area Silicon Photodiode |
||
Product Description:

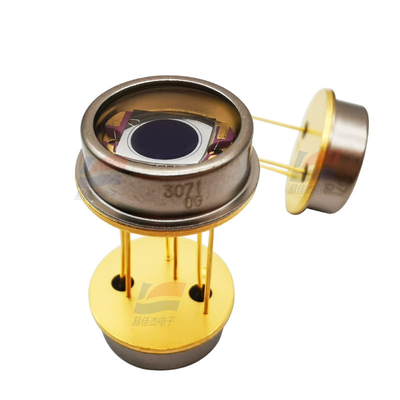

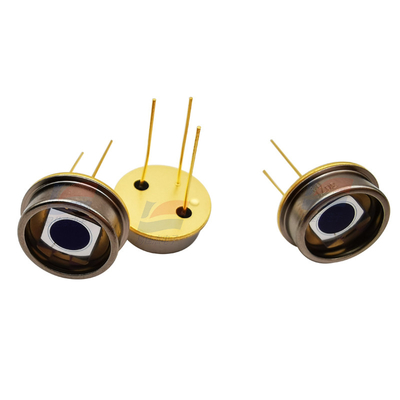

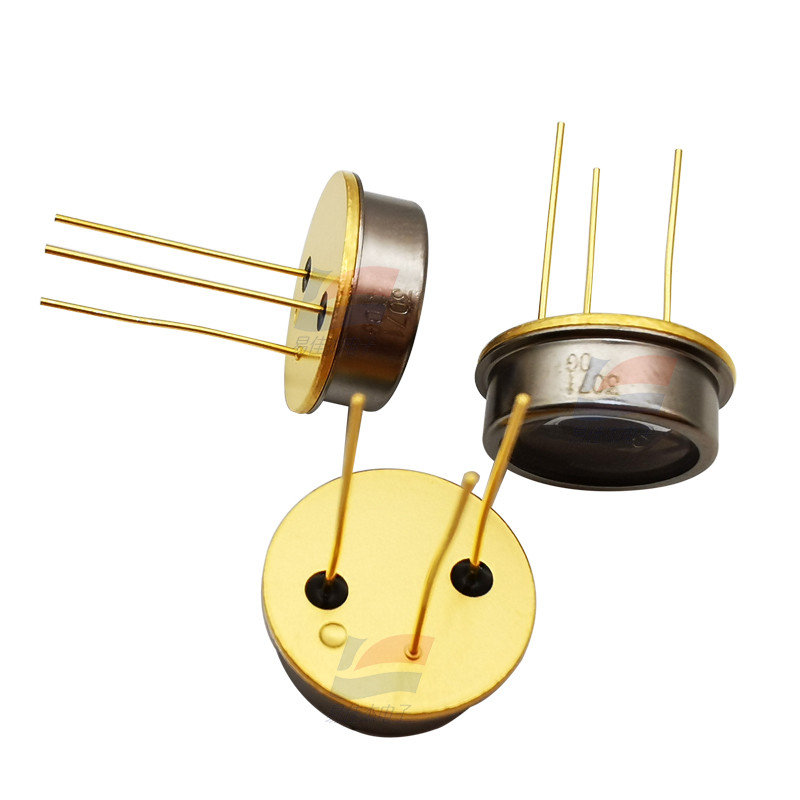

S3071 Si PIN Photodiode Large Photosensitive Area High Speed TO-8 Package
Features:
Large area high speed silicon PIN photodiode
The S3071 has a large photosensitive area, but has excellent frequency response at 40 MHz. This diode is suitable for FSO(free space Optics) and high speed pulsed light detection.
Product features
Photosensitive area: φ5.0mm
Cut-off frequency: 40 MHz (VR=24 V)
High reliability: TO-8 metal package
Measurement conditions Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=24 V, Cutoff frequency: VR=24 V, Terminal capacitance: VR=24 V, F =1 MHz, λ=λp, Noise equivalent power: VR=24 V, λ=λp, unless otherwise noted
Specifications:
| Peak sensitivity wavelength (typical value) | 920 nm |
| Sensitivity (typical value) | 0.54 A/W |
| Dark current (maximum) | 10000 pA |
| Rise time (typical value) | 18 mu s |
| Junction capacitance (typical value) |
40 pF
|
