Product Details:
|
| Pulse: | 340-1100 | Gap LED 560nm: | 0.33 |
|---|---|---|---|
| Typ Ua: | 50 | Times: | 1.12 |
| Highlight: | S2387-66R,Photoelectric IR Sensor,UVTRON Flame Sensor |
||
Product Description:

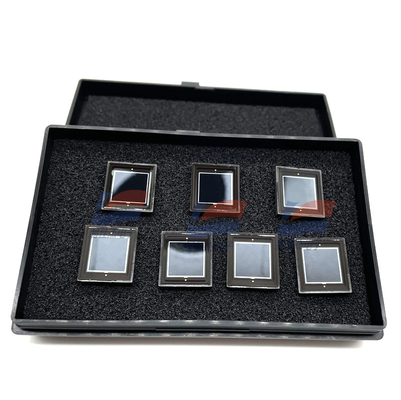

S2387-66R Silicon Photodiode For Universal Photometry From Visible To Infrared Low Dark Current
Features:
Large area high speed silicon PIN photodiode
The S2387-66R has a large photosensitive area, but has excellent frequency response at 40 MHz. This diode is suitable for FSO(free space Optics) and high speed pulsed light detection.
Product features
Photosensitive area: φ5.0mm
Cut-off frequency: 40 MHz (VR=24 V)
High reliability: TO-8 metal package
Measurement conditions Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=24 V, Cutoff frequency: VR=24 V, Terminal capacitance: VR=24 V, F =1 MHz, λ=λp, Noise equivalent power: VR=24 V, λ=λp, unless otherwise noted
Specifications:
| Peak sensitivity wavelength (typical value) | 920 nm |
| Sensitivity (typical value) | 0.58 A/W |
| Dark current (maximum) | 4300pA |
| Rise time (typical value) | 18 mu s |
| Junction capacitance (typical value) |
40 pF
|
