S12698-02 Silicon Photodiode High UV Resistance For UV Monitoring

S12698-02 Silicon Photodiode High UV Resistance For UV Monitoring
S12698-02 Silicon Photodiode High UV Resistance For UV Monitoring S12698-02 Silicon Photodiode High UV Resistance For UV Monitoring

Large Image :  S12698-02 Silicon Photodiode High UV Resistance For UV Monitoring

Product Details:
Place of Origin: Japan
Brand Name: Hamamatsu
Model Number: S12698-02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: In box
Delivery Time: 3-5work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month

S12698-02 Silicon Photodiode High UV Resistance For UV Monitoring

Description
Photographic Area Is: 5.8 × 5.8mm Number Of Pixels: 1
Refrigeration And: Non - Cooled Encapsulated: Metal
Encapsulation Type Is: TO-8 Reverse Voltage (Max.): 5V
Spectral Response Range Is: 190 To 1000 Nm Peak Sensitivity Wavelength: 800 Nm
Highlight:

S12698-02

,

UV Light Monitor Photodiode

,

UV Enhanced Photodiode

Product Description:

S12698-02 Silicon Photodiode High UV Resistance For UV Monitoring



Features:

High UV light tolerance, suitable for UV light monitoring photodiodes

The S12698 series is a silicon photodiode that uses a non-resin structure to achieve high reliability for monitoring ultraviolet light. The sensitivity of the product is not affected by UV light irradiation, so it is suitable for monitoring strong UV light sources and other applications.

Containing UV glass Windows (sealed)

High sensitivity in UV band

Highly reliable UV radiation monitoring

No resin structure is used

Noise equivalent power (typical value) 3.5×10-14 W/ hz1/2

Measurement conditions: Ta=25 ℃, Typ., Photosensitivity: λ=800 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted



Specifications:

Peak sensitivity wavelength (typical value) 800 nm
Sensitivity (typical value) 0.38 A/W
Dark current (maximum) 5000pA
Rise time (typical value) 100mu s
Junction capacitance (typical value)

700 pF

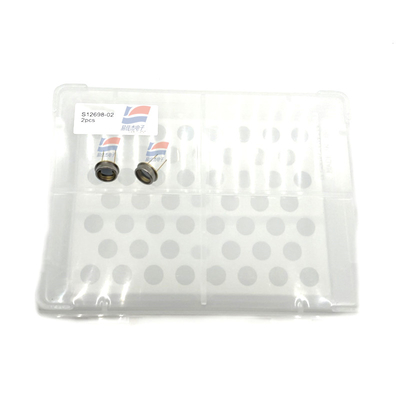

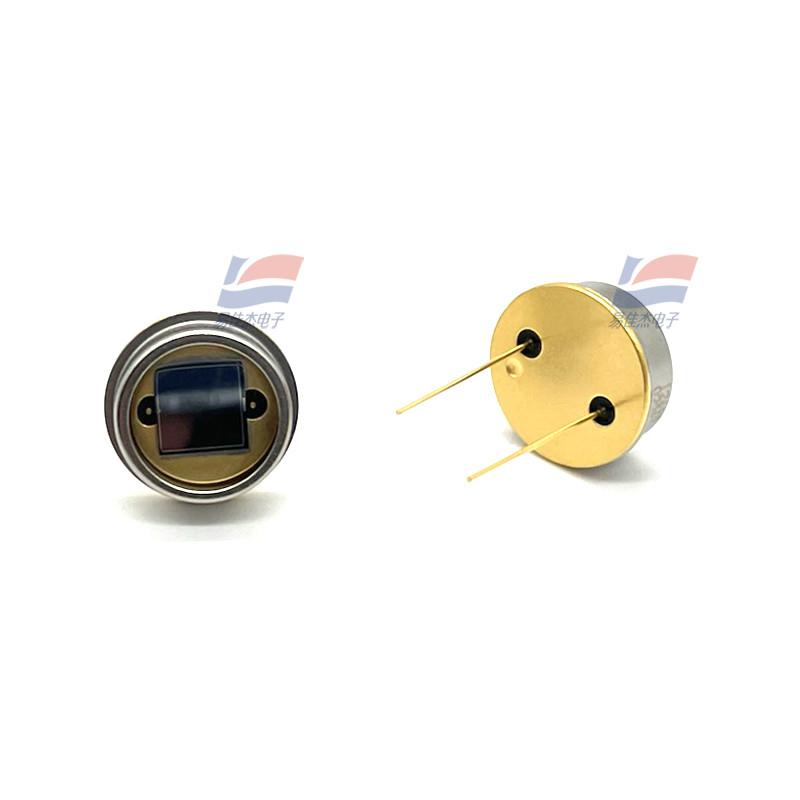

S12698-02 Silicon Photodiode High UV Resistance For UV Monitoring 1S12698-02 Silicon Photodiode High UV Resistance For UV Monitoring 2
