Product Description:
XGZP168 Pressure Sensor For Non-corrosive Gases
Features:
XGZP168 PIEZOresistive PRESSURE sensor is a pressure sensor suitable for biomedical, automotive electronics and other fields, the core part
The chip is a silicon piezoresistive pressure sensitive chip processed by MEMS technology. The pressure-sensitive chip consists of an elastic membrane and an integrated membrane
Four resistors, the four varistors form a Wheatstone bridge structure, when pressure is applied to the elastic film, the bridge will create a and a
Voltage output signal with linear proportional pressure.

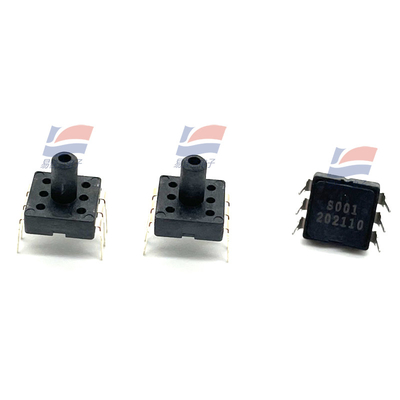

XGZP168 pressure sensor is an OEM component packaged in standard SOP6 and DIP6 form for easy surface attachment
Mount or double - row in - line installation
Good linearity, repeatability and stability, high sensitivity, convenient for users to debug and compensate for output and temperature drift.
Electronic sphygmomanometer, ventilator, oxygen generator, monitor and other medical fields
(7) Tire pressure gauge, MAP, steering power assist, brake power assist and other automotive electronic fields
Massager, massage chair, air mattress and other sports and fitness equipment field
(4) Vacuum packing machine, vacuum mixer, vacuum wall breaker, vacuum preservation box, vacuum pump and other vacuum negative pressure fields
Washing machine, beer machine, coffee machine, vacuum cleaner, water purifier, pressure instrument, pneumatic components and other fields
Specifications:
| Measurement medium |
air |
| medium temperature |
(25±1) ℃ |
| ambient temperature |
(25±1) ℃ |
| Vibration |
0.1 g (1 m/s2) Max |
| humidity |
(50%±10%) RH |
| power supply |
(5±0.005) V DC |
