Product Description:

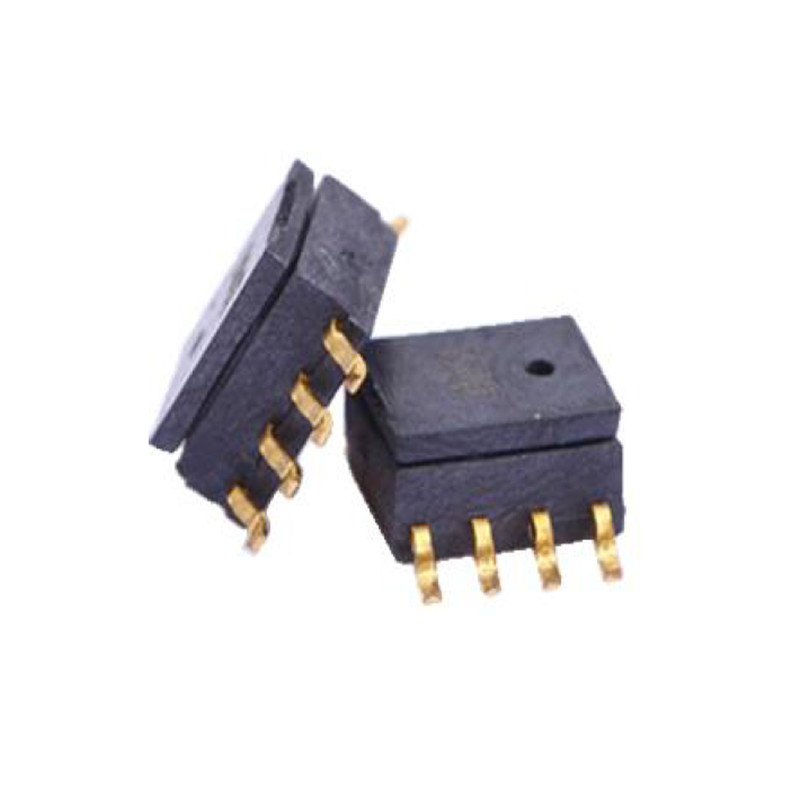

XGZP170 Electronic Pressure Sensor Wheatstone Bridge High Accuracy 700kPa
Features:
XGZP170 piezoresistive pressure sensor is a pressure sensor suitable for biomedical, automotive electronics and other fields, the core part
The chip is a silicon piezoresistive pressure sensitive chip processed by MEMS technology. The pressure-sensitive chip consists of an elastic membrane and an integrated membrane
Four resistors, the four varistors form a Wheatstone bridge structure, when pressure is applied to the elastic film, the bridge will create a and a
Voltage output signal with linear proportional pressure.
XGZP170 PRESSURE SENSOR IS AN OEM component PACKAGED in standard SOP6 format. It is convenient for users to use surface mount and core
The surface is coated with soft silica gel, which can effectively moistureproof and prevent oil and gas.
Good linearity, repeatability and stability, high sensitivity, convenient for users to debug and compensate for output and temperature drift.
Application:
Rice cooker, soybean milk machine, water purifier, coffee machine and other small household appliances
(4) Tire pressure gauge, brake power assist, steering power assist, MAP sensor and other automotive electronic fields
Massager, air mattress, animal blood pressure, gastrointestinal sensors and other medical fitness equipment field
Instrumentation and other absolute voltage systems
Specifications:
| Measurement medium |
air |
| medium temperature |
(25±1) ℃ |
| ambient temperature |
(25±1) ℃ |
| Vibration |
0.1g(1m/ S2)Max |
| humidity |
(50%±10%) RH |
| power supply |
(5±0.005) V DC |
