Product Details:
|
| Constant Voltage Supply: | 5 -10 V | Constant Current Supply: | 1.5- 3 MA |
|---|---|---|---|
| Bridge Arm Resistance: | 4, 5, 6 Kω | Input Impedance: | 3, 4, 5 Kω Constant Current Power Supply |
| Output Impedance Is: | 4 5 6 Kω | ||
| Highlight: | XGZP2406 Electronic Pressure Sensor,SOI Electronic Pressure Sensor,Piezoresistive Silicon Pressure Sensor |
||
Product Description:

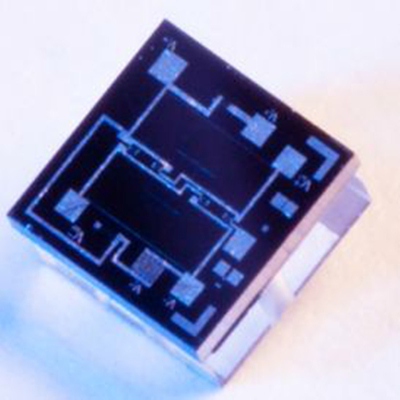

XGZP2406 SOI Piezoresistive Pressure Sensitive Chip For A Variety Of Instruments
Features:
XGZP2406 piezoresistive pressure sensitive chip is processed by 6 inch MEMS production line. The pressure sensitive chip consists of an elastic
The membrane and four resistors integrated on the membrane, the four varistors form a Wheatstone bridge structure, when pressure is applied to the elastic membrane
The up-time bridge produces a voltage output signal that is linearly proportional to the applied pressure.
The chip adopts SOI structure and can be used in the field of high temperature of 180℃. The chip size is 2.4mm×2.4mm.
Good linearity, repeatability and stability, zero and full scale temperature drift is small, excellent anti-jamming ability and anti-static ability, overload
Strong ability, high sensitivity, convenient for users to use operational amplifier or integrated circuit for output debugging.
It is suitable for oil-filled isolation and a variety of simple package pressure sensors.
USES:
(4) TPMS sensor, MAP sensor, oil pressure test and other automotive electronics
(4) Air compressor, household appliances and other civil fields
(4) Water pressure testing for pumps, fire fighting, scuba diving, DAMS, etc
(4) oil, coal, high-speed rail, electric power and other industrial fields
Various instruments and meters
Specifications:
| Measurement medium | air |
| medium temperature | (25±1) ℃ |
| ambient temperature | (25±1) ℃ |
| Vibration | 0.1g(1m/ S2)Max |
| humidity | (50%±10%) RH |
| power supply | (5±0.005) V DC |
