Product Description:

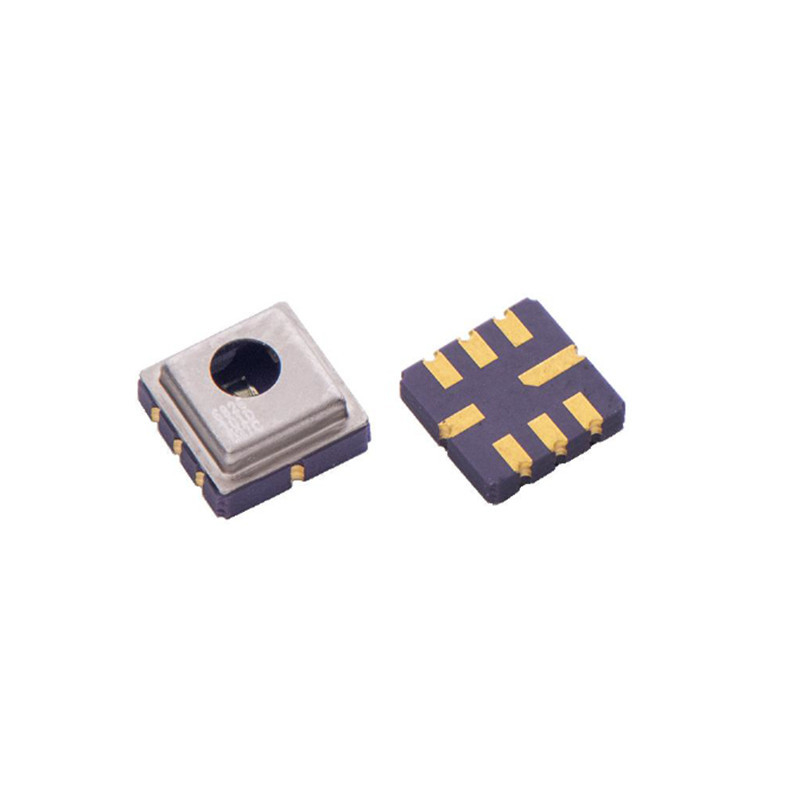

XGZP6826A 0 kpa to 100 kpa... 2500kPa Pressure Sensor Module For Pressure Switch Pneumatic Control System, Etc
Features:
XGZP6826A pressure module adopts ceramic plate as the substrate material, integrated pressure sensitive chip and digital conditioning chip, on the sensor
The offset, sensitivity, temperature drift and nonlinearity are digitally compensated to produce a calibrated, temperature compensated standard using the supply voltage as a reference
Voltage signal. The surface of the chip in the pressure sensor module is covered with fluorinated silica gel, which can withstand water, moisture and oil and gas.
XGZP6826A pressure module is small in size, easy to install, can be calibrated according to user requirements output signal, widely used in consumer electronics, small household appliances,
All kinds of water level measurement and instrumentation and other fields.
Automobile and motorcycle air intake system, tire pressure gauge, MAP sensor, vehicle air pump and other automotive electronic fields
· Fire extinguishers, altimeters, barometers, weather stations, navigation and other instrumentation areas.
· Air pumps, vacuum pumps, pressure switches, pneumatic control systems and industrial equipment, etc
· Hydrostatic measurement, diving equipment and other absolute pressure systems
Specifications:
| Measurement medium |
air |
| medium temperature |
(25±1) ℃ |
| ambient temperature |
(25±1) ℃ |
| Vibration |
0.1g(1m/ S2)Max |
| humidity |
(50%±10%) RH |
| power supply |
(5±0.005) V DC |
