Product Description:
XGZP6847A - 100 kpa ~ 1 kpa... The 1000kPa Pressure Sensor Module Is Used In Medical Equipment
Features:

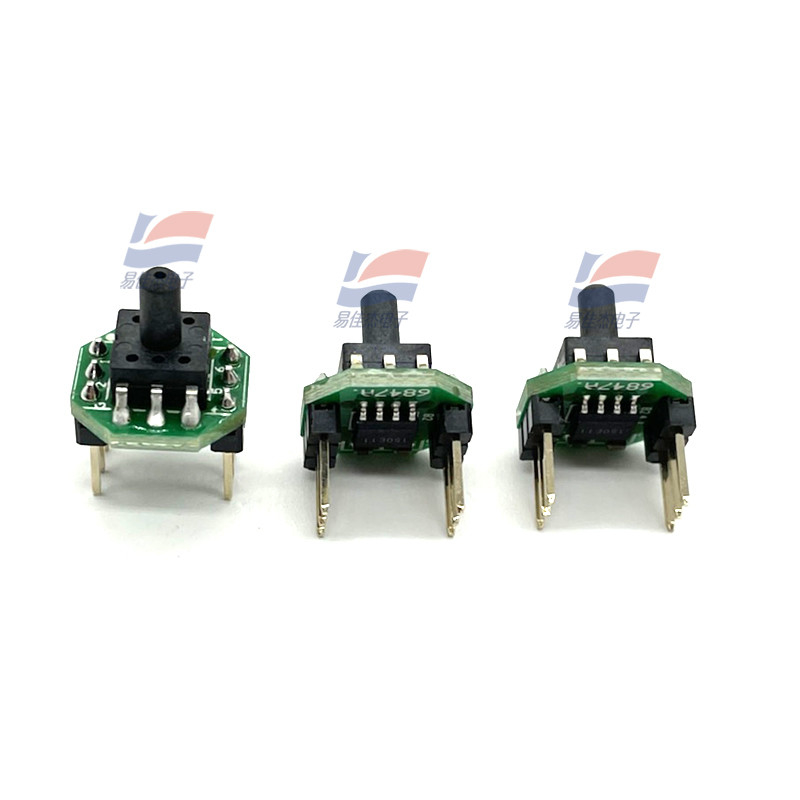

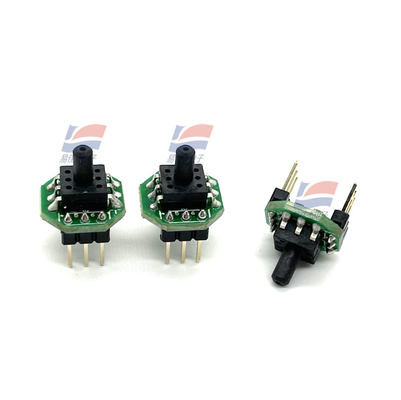

XGZP6847A type pressure sensor module in the form of class DIP encapsulation, the two side of PCB were fitted with SOP encapsulation of pressure sensor and signal processing circuit chip, offset and sensitivity of sensors, temperature drift and nonlinear digital compensation, power supply voltage as reference, to produce a standard after calibration, temperature compensation, the voltage signal.
XGZP6847A PRESSURE sensor module size is small, easy to install, can be calibrated according to user requirements output signal, widely used in medical electronics, automotive electronics, sports and fitness equipment and other fields.
XGZP6847A can be customized with various pressure ranges and accuracy (up to ±2Pa).
Electronic sphygmomanometer, ventilator, oxygen generator, monitor and other medical fields
Tire pressure gauge, steering power assist, brake power assist, MAP sensor and other automotive electronic fields
Massager, massage chair, air mattress and other sports and fitness equipment field
Water heater, oxygen water machine, beer machine, coffee machine, electric breast pump, vacuum cleaner and other fields
Air pump, vacuum pump, pressure meter and other fields
Specifications:
| Measurement medium |
air |
| medium temperature |
(25±1) ℃ |
| ambient temperature |
(25±1) ℃ |
| Vibration |
0.1g(1m/ S2)Max |
| humidity |
(50%±10%) RH |
| power supply |
(5±0.005) V DC |
