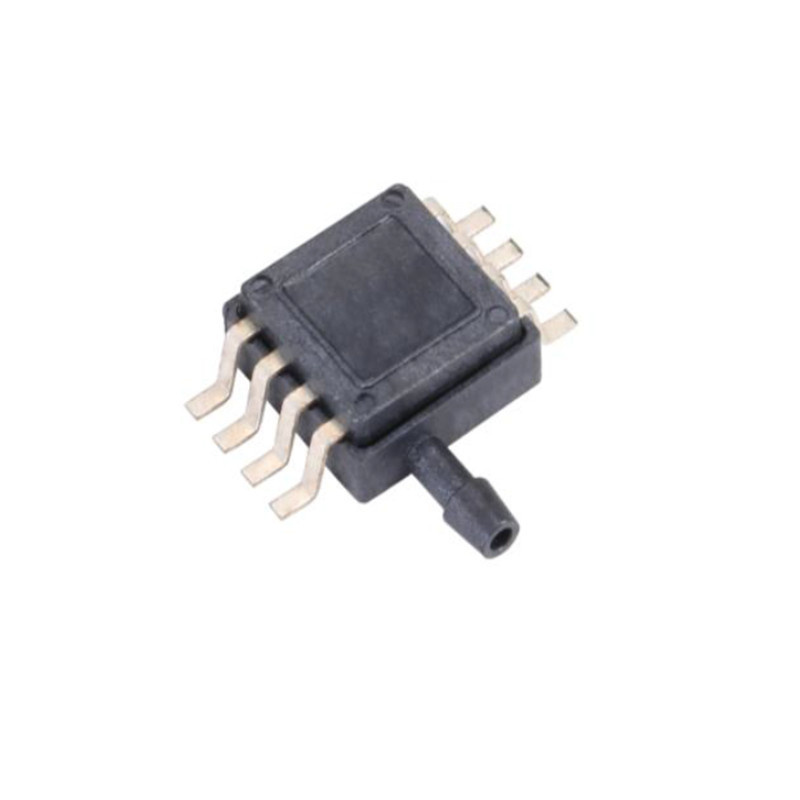

XGZP6887A Absolute Pressure Sensor 100 KPa - 2.5 KPa Differential Pressure Transducer

I'm Online Chat Now

XGZP6887A Absolute Pressure Sensor 100 KPa - 2.5 KPa Differential Pressure Transducer

XGZP6887A Absolute Pressure Sensor 100 KPa - 2.5 KPa Differential Pressure Transducer
XGZP6887A Absolute Pressure Sensor 100 KPa - 2.5 KPa Differential Pressure Transducer

Large Image :  XGZP6887A Absolute Pressure Sensor 100 KPa - 2.5 KPa Differential Pressure Transducer

Product Details:
Place of Origin: CHINA
Brand Name: CFsensor
Model Number: XGZP6887A
Payment & Shipping Terms:
Minimum Order Quantity: 5
Packaging Details: Tubes of
Delivery Time: 3-5work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1501/pcs/pre

XGZP6887A Absolute Pressure Sensor 100 KPa - 2.5 KPa Differential Pressure Transducer

Description
Measurement Medium Temperature: -10 ~ 85 ℃ Storage Temperature: -40 ~ 150 ℃
Power Supply: (5±0.25) V DC Or (3.3±0.165) V DC Operating Temperature: -30 100 ℃
Operating Current: @25℃ 1700 UA
Highlight:

XGZP6887A Absolute Pressure Sensor

,

Absolute Pressure Sensor 100 KPa

,

2.5 KPa Differential Pressure Transducer

Product Description:

XGZP6887A - 100 kPa ~ 2.5 kPa... 200kPa Pressure Sensor Module Is Used For Non-corrosive Gases



Features:

XGZP6887A pressure module adopts SOP-like package form, through the pressure sensor core body and signal processing circuit core bound inside the shell

The sensor's offset, sensitivity, temperature drift and nonlinearity are digitally compensated, and the supply voltage is used as a reference to produce a calibrated temperature

Standard voltage signal after compensation.

XGZP6887A pressure module is small in size, easy to install, can be calibrated according to user requirements output signal, widely used in medical electronics, automotive electronics,

Sports and fitness equipment and other fields.

 Performance index

Power supply :(5±0.25) V DC or (3.3±0.165) V DC

Reference temperature: 25

Application field

· Electronic sphygmomanometer, ventilator, oxygen generator, monitor and other medical fields

· Tire pressure gauge, steering power assist, brake power assist, MAP sensor and other automotive electronic fields

· Massager, massage chair, air mattress and other sports and fitness equipment fields

· Water heater, oxygen water machine, beer machine, coffee machine, air pump, vacuum pump, pressure meter, electric breast pump, vacuum cleaner and other fields



Specifications:

Item value unit
output signal 0.5 ~ 4.5 (5V power supply) V
Accuracy ±1.0, ±0.5, ± 2.5% span
Long-term stability (1 year) 0.5% span
Overload pressure range Rated
Compensation temperature 0 ~ 60

XGZP6887A Absolute Pressure Sensor 100 KPa - 2.5 KPa Differential Pressure Transducer 0
