Product Description:
XGZP6899D - 100 kpa... 0 ~ 1 kpa... 200kPa Pressure Sensor Module Is Used For Non-corrosive Gases
Features:

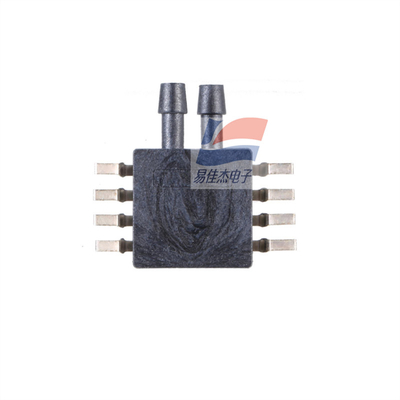

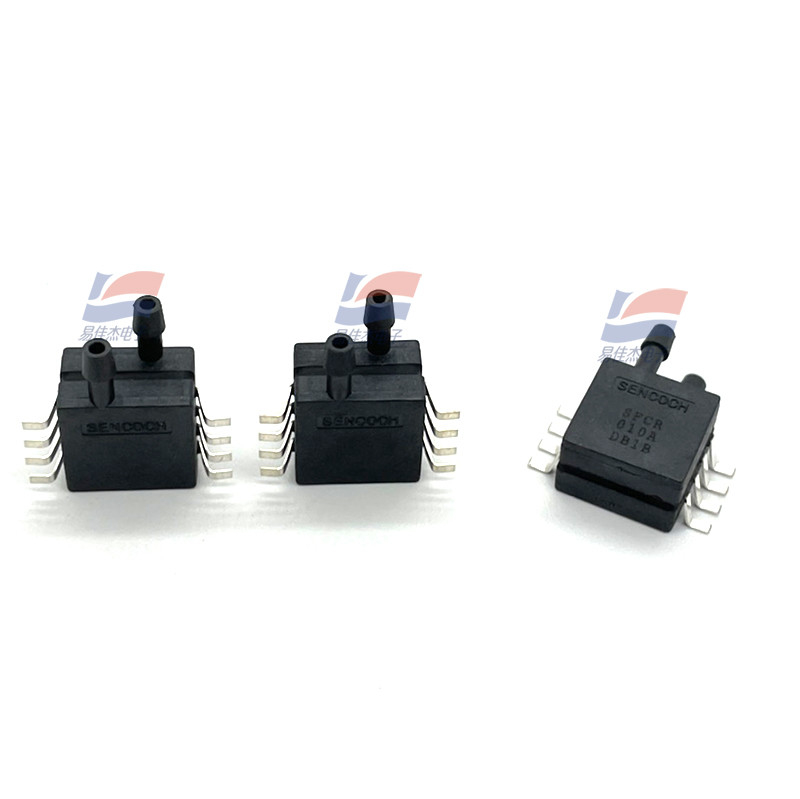

XGZP6899D pressure module adopts SOP8 package form, the design of barb tube can ensure the sealing of the installation. There is an encapsulated pressure pass
Sensor and signal conditioning chip, digital compensation for sensor offset, sensitivity, temperature drift and nonlinearity. Uses 24 bit ADC, and conditioning
Chip built-in temperature sensor, can output high precision pressure and temperature values. At the same time provide IIC communication protocol interface, anti-interference ability. all
Measurements are fully calibrated and temperature compensated.
XGZP6899D pressure module has fast response, high precision, good linearity and long-term stability.
XGZP6899D pressure module has high integration, good reliability, easy installation, easy to SMT, widely used in medical electronics, automotive electronics, sports
Fitness equipment and other fields.
Application field
· Ventilators, spirometers, negative pressure wound treatment, blood pressure monitoring, sleep apnea treatment and other medical fields
· Air flow detection, heating, ventilation and air conditioning, pneumatic equipment, pressure switches and other industrial fields
· Bioscience, small household appliances, consumer electronics, sports and fitness equipment, fire fighting equipment, Internet of things and other fields
· Gas flow meter, gas emission, variable air volume regulation and other fields
Specifications:
| Item |
value |
unit |
| Accuracy |
± 2 |
%span |
| Response time |
2.5ms@OSR_P=1024X |
Ms |
| SDA/SCL pull-up resistance |
4.7 |
Kohm |
| ESD HBM |
4000 |
V |
| Overload pressure |
2× |
Rated |
| Compensation temperature |
0-60 |
℃ |
| Measurement medium temperature |
-10 ~ 85 |
℃ |
| Storage temperature |
-40 ~ 150 |
℃ |
