Product Details:
|
| Photosensitive Area Is: | φ1.0mm | Number Of Pixels: | 1 |
|---|---|---|---|
| Encapsulated: | Metal | Encapsulation Type Is: | TO-18 |
| Cooling Mode: | Non - Cooled | Spectral Response Range Is: | 0.9 To 1.7 μm |
| Highlight: | G8370-81 Infrared Photoelectric Sensor,Infrared Photoelectric Sensor Low PDL,InGaAs PIN Photodiode |
||
Product Description:

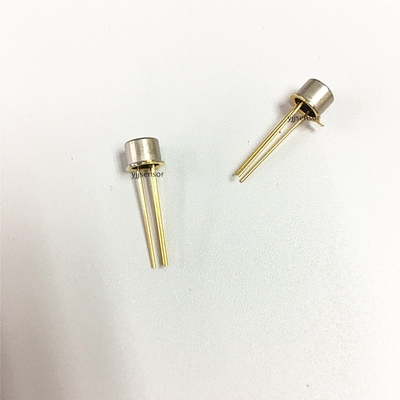

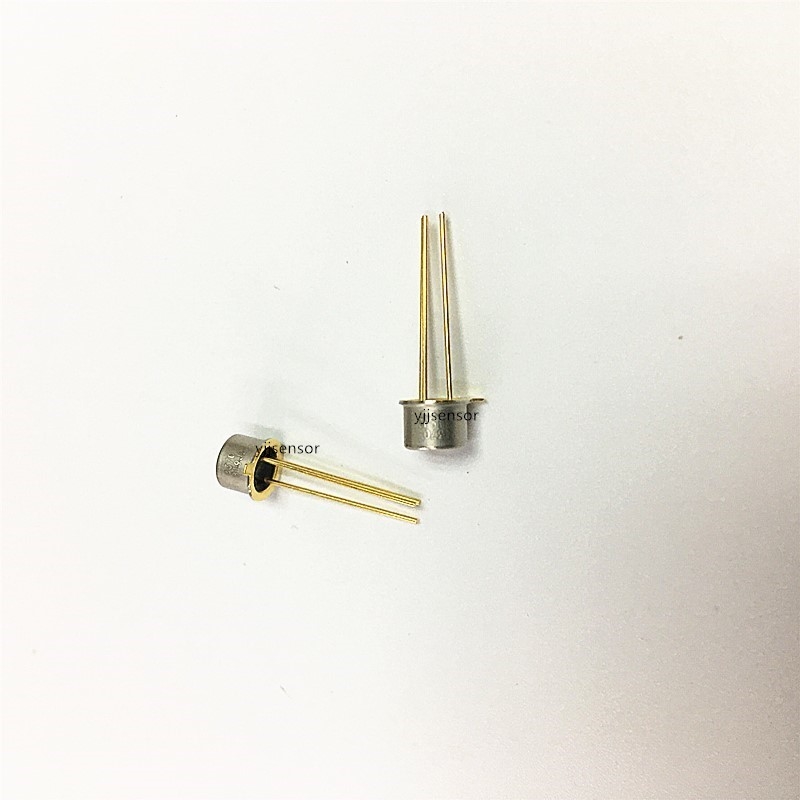

G8370-81 InGaAs PIN Photodiode Low PDL Polarization Dependence Loss
Features:
Low PDL(polarization dependent loss)
InGaAs PIN photodiode G8370-81 has low PDL (polarization dependent loss), large shitter resistance and very low noise at 1.55μm.
Product features
Low PDL(polarization dependent loss)
● Low noise, low dark current
● Large photographic area
● Photosensitive area: φ1 mm
Noise equivalent power (typical value) 2×10-14 W/ hz1/2
Measurement conditions TYP.TA =25 ℃, Photosensitivity: λ=λp, Dark Current: VR=1 V, Cutoff frequency: VR=1 V, RL=50 ω, -3 dB, Terminal capacitance: VR=1 V, F =1 MHz, unless otherwise noted
Specifications:
| peak sensitivity wavelength (typical value) was | 1.55 μm |
| Sensitivity (typical value) | 1.1 A/W |
| Dark current (maximum) | 5 nA |
| Cutoff frequency (typical value) | 35 MHz |
| Junction capacitance (typical value) | 90 pF |
| Noise equivalent power (typical value) | 2×10-14 W/ hz1/2 |
