S2386-8K Infrared Photoelectric Sensor 10 mV Silicon Carbide Photodiode Low Dark Current

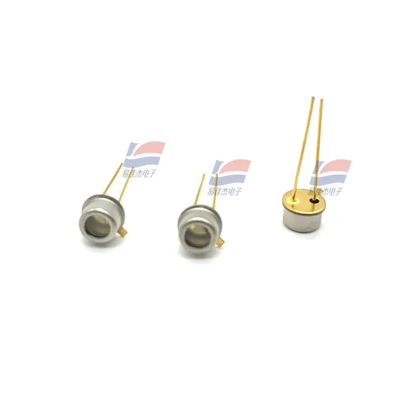

Large Image : S2386-8K Infrared Photoelectric Sensor 10 mV Silicon Carbide Photodiode Low Dark Current

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S2386-8K

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Tube
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

S2386-8K Infrared Photoelectric Sensor 10 mV Silicon Carbide Photodiode Low Dark Current

Description

Photographic Area Is:	5.8 × 5.8mm	Number Of Pixels:	1
Refrigeration And:	Non - Cooled	Encapsulation Type Is:	To-8
Reverse Voltage (Max.):	30V	Spectral Response Range:	320 To 1100 Nm
Highlight:	S2386-8K Infrared Photoelectric Sensor , Infrared Photoelectric Sensor 10 mV , Silicon Carbide Photodiode

Product Description:

S2386-8K Infrared Photoelectric Sensor 10 mV Silicon Carbide Photodiode Low Dark Current

Features:

Suitable for visible light to near infrared band, universal photometric determination

Product features

● High sensitivity in visible to near infrared band

● Low dark current

● High reliability

● High linearity

Rise time (typical value). 10 mu s

Junction capacitance (typical value) 4300 pF

Measurement condition TYP.TA =25 ℃, Unless otherwise noted,Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz

Specifications:

spectral response range is	320 to 1100 nm
Peak sensitivity wavelength (typical value)	960 nm
Sensitivity (typical value)	0.6 A/W
Dark current (Max.)	50 pA

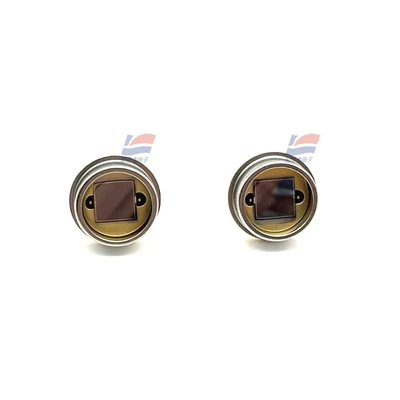

S2386-8K Infrared Photoelectric Sensor 10 mV Silicon Carbide Photodiode Low Dark Current 0

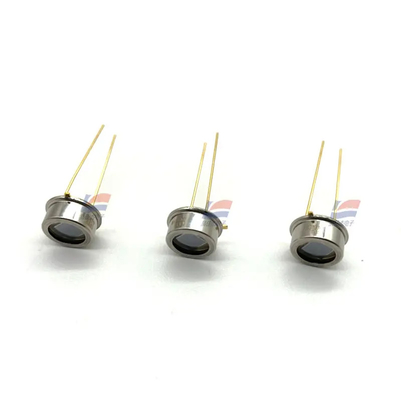

S2386-8K Infrared Photoelectric Sensor 10 mV Silicon Carbide Photodiode Low Dark Current 1
