S2386-44k Infrared Photoelectric Sensor Switch Sensor 1600 pF Highly Sensitive

Large Image : S2386-44k Infrared Photoelectric Sensor Switch Sensor 1600 pF Highly Sensitive

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S2386-44k

Payment & Shipping Terms:

Minimum Order Quantity:	5
Packaging Details:	Tubes of
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1501/pcs/pre

Contact Now

S2386-44k Infrared Photoelectric Sensor Switch Sensor 1600 pF Highly Sensitive

Description

Photographic Area Is:	3.6 × 3.6mm	Number Of Pixels:	1
Refrigeration And:	Non - Cooled	Encapsulated:	Metal
Encapsulation Type Is:	To-5
Highlight:	S2386-44k Infrared Photoelectric Sensor , Infrared Photoelectric Sensor 1600 pF , Infrared Photoelectric Switch Sensor

Product Description:

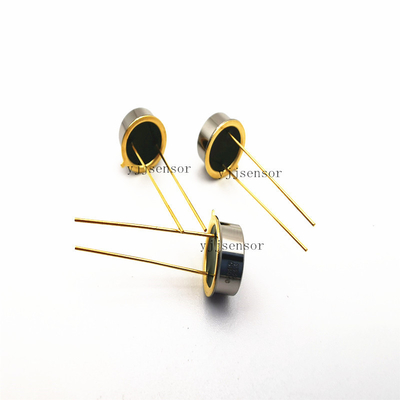

S2386-44k Silicon Photodiode Is Highly Sensitive From Visible To Near Infrared Band

Features:

Suitable for visible light to near infrared band, universal photometric determination

Product features

● High sensitivity in visible to near infrared band

● Low dark current

● High reliability

● High linearity

Junction capacitance (typical value) 1600 pF

Measurement condition TYP.TA =25 ℃, Unless otherwise noted,Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz

Specifications:

Reverse voltage (Max.)	30 V
spectral response range is	320 to 1100 nm
Peak sensitivity wavelength (typical value)	960 nm
Sensitivity (typical value)	0.6 A/W
Dark current (maximum)	20 pA
Rise time (typical value).	3.6 u s

S2386-44k Infrared Photoelectric Sensor Switch Sensor 1600 pF Highly Sensitive 0

S2386-44k Infrared Photoelectric Sensor Switch Sensor 1600 pF Highly Sensitive 1
